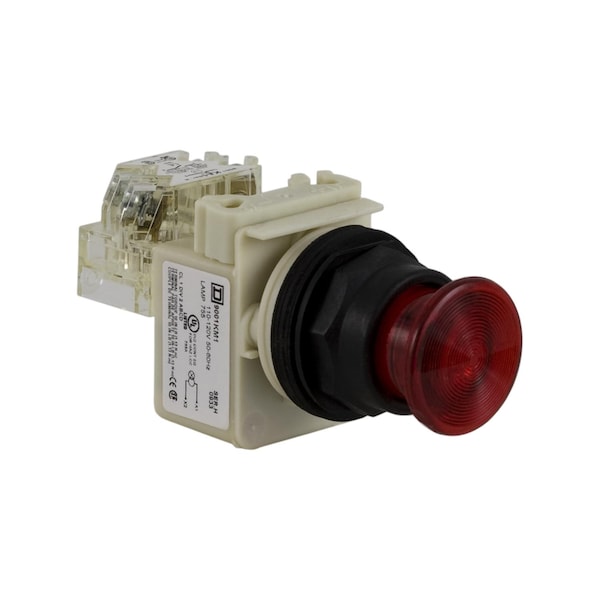

Botón pulsador iluminado, Harmony 9001SK, de plástico, forma de hongo de 35mm, color rojo, de 30mm, con retorno por resorte, 110-120V, 1 contacto normalmente abierto (C/O).
| Type of Operator | spring return |
|---|---|
| Item | PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS |
| Bezel Material | plastic |
| Standards | EN/IEC 60947-5-1, JIS C 852, UL 508, EN/IEC 60947-1, JIS C 4520, EN/IEC 60947-5-4, CSA C22.2 No 14 |
| Light Source | incandescent |
| Protective Treatment | TC |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-1 |
| [Icm] Rated Short-Circuit Making Capacity | 0.1 kA 240 V DC-13, 7200 VA, 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 125 V DC-13, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 60 kA 250 V DC-13, 7200 VA |
| Ip Degree of Protection | IP66 IEC 60529 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Operating Position | any position |
| Device Presentation | product |
| Operator Additional Information | screw-on plastic |
| Mounting Diameter | 30 mm |
| Contacts Type And Composition | O, 1 C |
| Mechanical Durability | 5,000,000 cycle |
| Electrical Shock Protection Class | class II IEC 61140 |
| Contacts Material | silver alloy |
| Light Block Supply | via integral transformer |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600-Q600 NEMA |
| [Ith] Conventional Free Air Thermal Current | 10A |
| Connections - Terminals | screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
| Contact Operation | standard |
| Short-Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
| Range of Product | Harmony 9001SK |
| Rated Breaking Capacity | 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 0.1 kA 240 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13 |
| [Us] Rated Supply Voltage | 110...120 V |
| Nema Degree of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X |
| Cap/Operator or Lens Colour | red |
| Ambient Air Temperature For Storage | -40-70°C |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Product or Component Type | push-button |
| Device Short Name | 9001SK |
| Shape of Screw Head | cross slotted |
| Tightening Torque | IEC, 0.8-0.8 N.m EN 60947-1 |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Bulb Base | BA 9s |
| Ambient Air Temperature For Operation | -25-70°C |
| Operator Profile | mushroom Ø 35 mm |
| Product Certifications | NEMA || UL 508 |
| Package Quantity | 1 |
