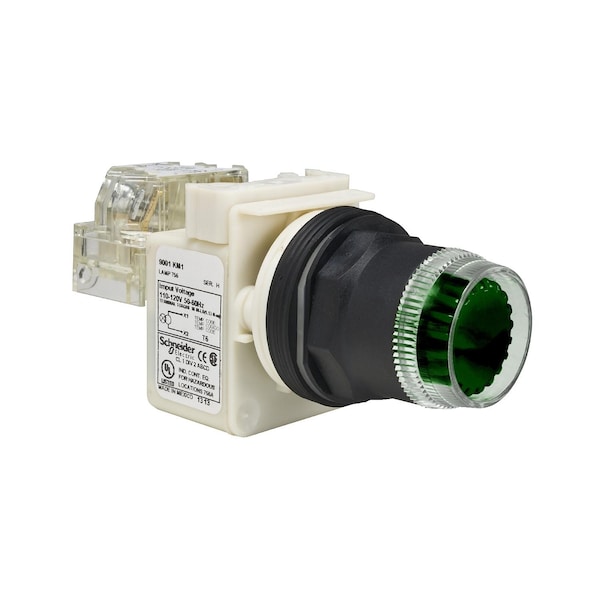

Botón pulsador iluminado, Harmony 9001SK, de plástico, saliente, verde, 30mm, retorno por resorte, LED verde, 120V, 1 NA.
| Item | PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS |
|---|---|
| Bezel Material | plastic |
| Standards | JIS C 4520 || UL 508 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 |
| Operator Additional Information | without guard |
| Electrical Shock Protection Class | class II IEC 61140 |
| Product Certifications | NEMA || UL 508 |
| Contacts Material | silver alloy |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Device Short Name | 9001SK |
| Contact Operation | standard |
| Rated Breaking Capacity | 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 240 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13 |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Mechanical Durability | 5,000,000 cycle |
| Short-Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
| Operator Profile | projecting, green projecting |
| Light Block Supply | direct |
| Shape Of Screw Head | cross slotted |
| Device Presentation | product |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-1 |
| [Us] Rated Supply Voltage | 120 V, 120 V AC/DC |
| Ambient Air Temperature For Operation | -25-70°C |
| Product Or Component Type | push-button |
| Protective Treatment | TC |
| Contacts Type And Composition | 1 NO |
| Bulb Base | BA 9s |
| Tightening Torque | IEC, 0.8-0.8 N.m EN 60947-1 |
| [Icm] Rated Short-Circuit Making Capacity | 0.1 kA 240 V DC-13, 7200 VA || 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 125 V DC-13, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 60 kA 250 V DC-13, 7200 VA |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X |
| Connections - Terminals | screw clamp terminals 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1 |
| Type Of Operator | spring return |
| Cap/Operator Or Lens Colour | green |
| Mounting Diameter | 30 mm |
| Operating Position | any position |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| [Ie] Rated Operational Current | 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| Ambient Air Temperature For Storage | -40-70°C |
| Light Source | LED |
| Light Source Colour | green |
| Range of Product | Harmony 9001SK |
| Package Quantity | 1 |
