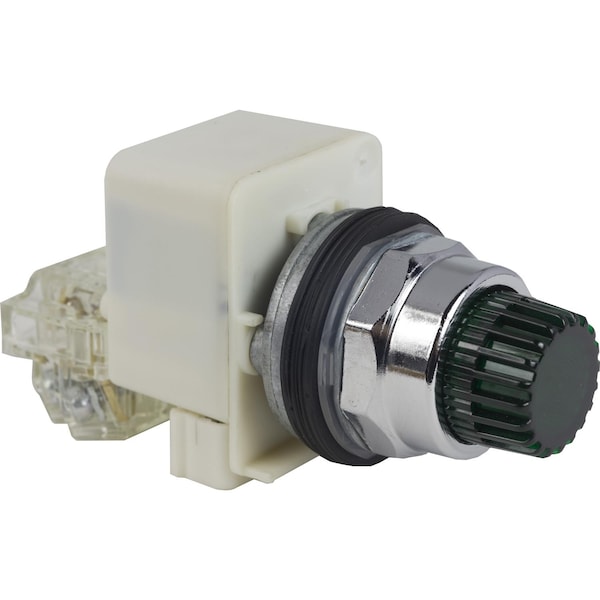

Cabeza de botón pulsador iluminado, Harmony 9001K, metálico, saliente, verde, 30mm, retorno por resorte, LED verde, 24-28V.
| Item | PUSHBUTTON OPERATOR 30MM TYPE K +OPTIONS |
|---|---|
| Bezel Material | metal |
| Standards | UL 508 || EN/IEC 60947-5-4 || JIS C 852 || JIS C 4520 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Ambient Air Temperature For Storage | -40-70°C |
| Type Of Operator | spring return |
| Ambient Air Temperature For Operation | -25-70°C |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 |
| Device Short Name | 9001K |
| Mechanical Durability | 5,000,000 cycle |
| Mounting Diameter | 30 mm |
| Light Source Colour | green |
| Shape Of Signaling Unit Head | round |
| Light Source | Green LED |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Cap/Operator Or Lens Colour | green |
| Product Or Component Type | head for illuminated push-button |
| Product Certifications | NEMA || UL 508 |
| Contacts Type And Composition | without contact block |
| Operator Profile | unmarked, green projecting, projecting |
| Bulb Base | BA 9s |
| Operating Position | any position |
| Protective Treatment | TC |
| [Us] Rated Supply Voltage | 24 to 28 V |
| Light Block Supply | direct 24 to 28 V AC/DC |
| Electrical Shock Protection Class | class II IEC 61140 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Range of Product | Harmony 9001K |
| Package Quantity | 1 |
