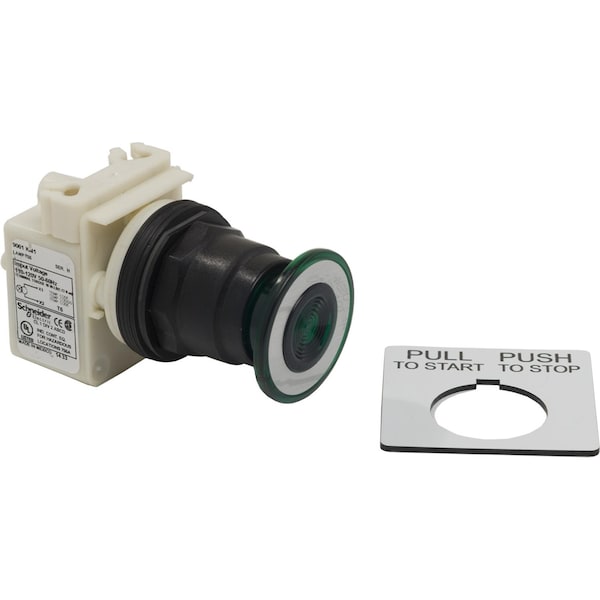

Cabezal de botón iluminado, Harmony 9001SK, plástico, seta de 41mm, verde, 30mm, 3 posiciones, retorno al centro, 110-120V.
| Size | 30 mm |
|---|---|
| Item | PUSHBUTTON 120VAC 30MM SK +OPTIONS |
| Bezel Material | plastic |
| Standards | JIS C 852 || UL 508 || JIS C 4520 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 |
| Bulb Base | BA 9s |
| Operator Profile | mushroom Ø 41 mm |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Mechanical Durability | 5,000,000 cycle |
| Cap/Operator Or Lens Colour | green |
| Operator Additional Information | screw-on plastic |
| Supply Frequency | 50 to 60 Hz |
| Device Presentation | basic element |
| Mounting Diameter | 30 mm |
| Type Of Operator | pull : spring return, center : stay put, push : spring return |
| Light Block Supply | via integral transformer |
| [Us] Rated Supply Voltage | 110 to 120 V |
| Light Source | bulb |
| Operator Position Information | 3 positions |
| Contacts Type And Composition | without contact block |
| Device Short Name | 9001SK |
| Product Or Component Type | head for illuminated push-button |
| Ip Degree Of Protection | IP66 |
| Range of Product | Harmony 9001SK |
| Package Quantity | 1 |
