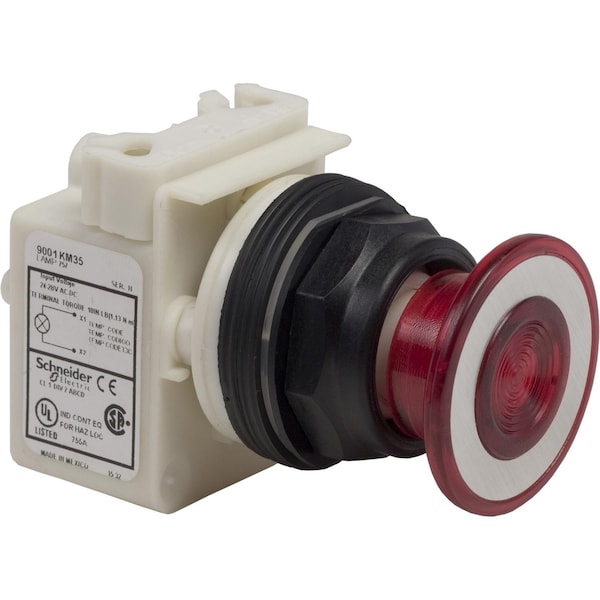

Cabezal de botón pulsador iluminado, Harmony 9001SK, plástico, con forma de hongo de 41mm, rojo, 30mm, 2 posiciones, empuje-tiro, 24-28V.
| Size | 30 mm |
|---|---|
| Item | PUSHBUTTON 28V 30MM SK +OPTIONS |
| Bezel Material | plastic |
| Standards | UL 508 || JIS C 852 || JIS C 4520 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 |
| Operator Additional Information | screw-on plastic |
| Mechanical Durability | 5,000,000 cycle |
| Device Presentation | basic element |
| Bulb Base | BA 9s |
| Device Short Name | 9001SK |
| Cap/Operator Or Lens Colour | red |
| [Us] Rated Supply Voltage | 24 to 28 V |
| Mounting Diameter | 30 mm |
| Light Block Supply | full voltage |
| Light Source | bulb |
| Ip Degree Of Protection | IP66 |
| Operator Profile | mushroom Ø 41 mm |
| Product Or Component Type | head for illuminated push-button |
| Type Of Operator | push-pull |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Contacts Type And Composition | without contact block |
| Operator Position Information | 2 positions |
| Range of Product | Harmony 9001SK |
| Package Quantity | 1 |
