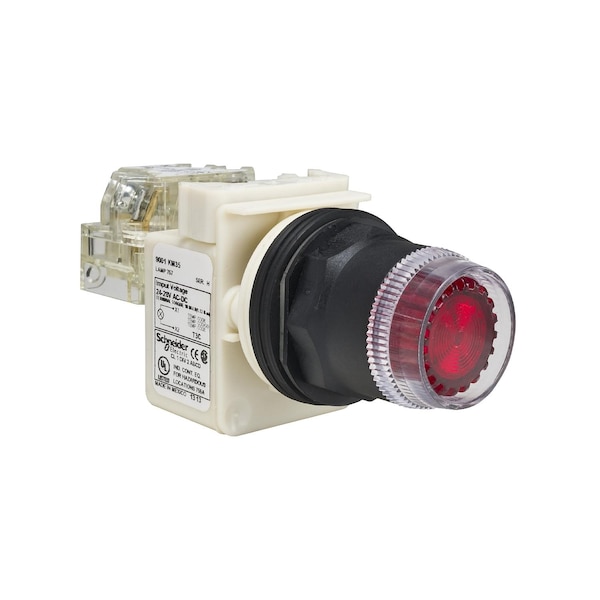

Cabeza de botón iluminado, Harmony 9001SK, de plástico, tipo seta de 57mm, color rojo, 30mm, retorno por resorte, 110-120V.
| Item | PUSHBUTTON OPERATOR 30MM SK +OPTIONS |
|---|---|
| Bezel Material | plastic |
| Standards | JIS C 852 || EN/IEC 60947-5-4 || UL 508 || JIS C 4520 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 |
| Operator Profile | red mushroom Ø 57 mm, unmarked |
| Bulb Base | BA 9s |
| Contacts Type And Composition | without contact block |
| Electrical Shock Protection Class | class II IEC 61140 |
| Light Block Supply | via integral transformer 110 to 120 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | -25-70°C |
| Operating Position | any position |
| Ambient Air Temperature For Storage | -40-70°C |
| Operator Additional Information | screw-on plastic |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X |
| Device Short Name | 9001SK |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Light Source | incandescent |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Shape Of Signaling Unit Head | octagonal |
| Protective Treatment | TC |
| Product Or Component Type | head for illuminated push-button |
| Mechanical Durability | 5,000,000 cycle |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Type Of Operator | spring return |
| Mounting Diameter | 30 mm |
| Product Certifications | UL 508 || CSA LR25490 class 3211 03 || NEMA || UL listed file E78403 CCN NKCR |
| Range of Product | Harmony 9001SK |
| Package Quantity | 1 |
