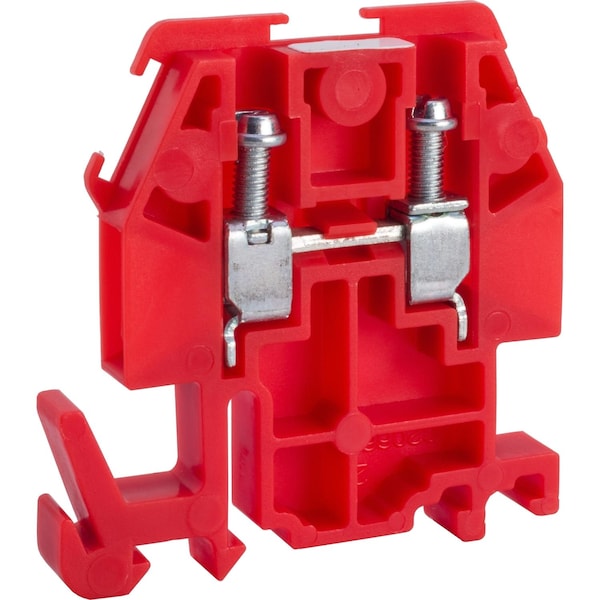

Bloque de terminales Linergy, 30A, calibre 22 AWG, calibre 10 AWG.
| Item | Linergy terminal block,box lug connecto |
|---|---|
| Number of Poles | Not Applicable |
| Standards | UL recognized E60616 CCN XCFR2CSA file 62144 class 6228 01CE |
| Color | Red |
| Width | 1.72 in |
| Connection Type | Box Lug |
| Depth | 0.235 in |
| Height | 1.82 in |
| Overall Width | 1.72 in |
| Overall Length | 1.82 in |
| For Maximum Wire Size | 10 AWG |
| Circuit Protection Type | None |
| Housing Color | Red |
| Maximum Voltage | 600 V AC/DC |
| For Minimum Wire Size | 22 AWG |
| For Fuse Length | Not Applicable |
| For Fuse Diameter | Not Applicable |
| Current | 30 A |
| Overall Depth | 0.24 in |
| For Conductor Material | Copper |
| Number of Tiers | Not Applicable |
| Line Rated Current | 30-30 A UL || 30-30 A CSA |
| Product Or Component Type | terminal block |
| Mounting Support | 35 mm DIN rail || 9080GH track |
| Number Of Terminal Blocks | 51 per foot |
| Ambient Air Temperature For Operation | -40-257°F |
| Product Certifications | UL recognized E60616 CCN XCFR2 || CSA file 62144 class 6228 01 || CE |
| Connections - Terminals | lug zinc plated steel 7-8 lbf.in : AWG 22...AWG 10 copper) |
| Product Compatibility | GM6B |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Localisation On Device | standard |
| Protection Type | fingersafe DIN 57470 |
| Awg Gauge | AWG 22...AWG 10 copper |
| Electrical Connection | steel box lugs |
| Package Quantity | 1 |
