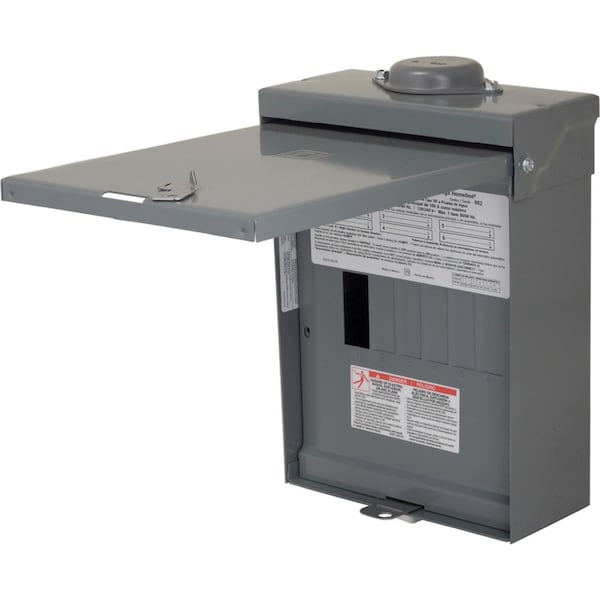

Load Center, 120/240V AC, 100A, 6 Poles
| Item | Load Center |
|---|---|
| Voltage | 120/240V AC |
| Amps | 100A |
| Number of Poles | 6 |
| Max. Wire Size | AWG 1 aluminium/copper |
| Min. Wire Size | AWG 8 |
| Width | 226 mm |
| Material | tin plated aluminium busbar |
| Height | 321 mm |
| Depth | 108 mm |
| Number Of Tandem Circuit Breakers | 6 |
| Awg Gauge | AWG 8...AWG 1 copper or aluminium |
| Phase | 1 phase |
| Number Of Circuits | 12 |
| Ambient Air Temperature For Operation | -5 2°C || 40 2°C |
| Product Certifications | UL listed file E-6294 |
| Cover Type | Surface cover |
| Product Or Component Type | Load Center |
| Wiring Configuration | 3-wire |
| Short-Circuit Current | 10 kA |
| Enclosure Material | welded galvannealed steel |
| Load Center Type | Fixed Mains |
| Number Of Spaces | 6 |
| Surface Finish | Baked enamel Gray |
| Line Rated Current | 100 A |
| Nema Degree Of Protection | NEMA 3R outdoor |
| Package Quantity | 1 |
