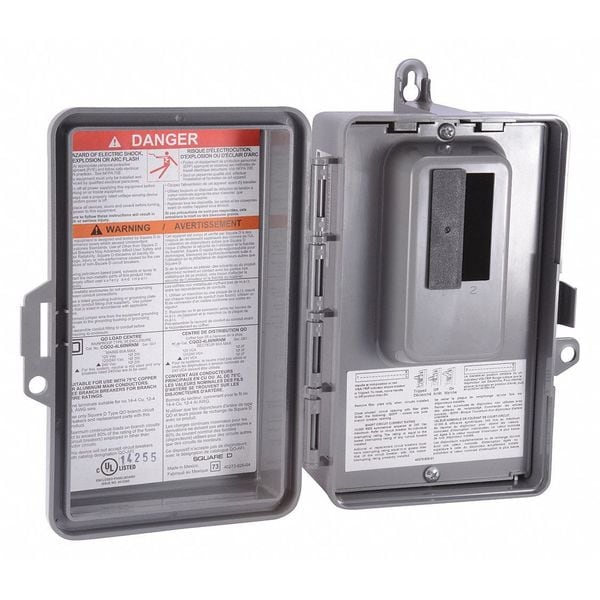

Load Center, 2 Spaces, 60A Amps, 120/240V AC
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 2 |
| Amps | 60A |
| Voltage | 120/240V AC |
| Circuit Breaker Type | QO |
| Phase | 1 |
| Max. No. of Tandem Breakers | 2 |
| Short Circuit Current Rating | 10kA |
| Height | 8.78 in |
| Width | 6.55 in |
| Depth | 4 in |
| Series | QO |
| Included Enclosure Cover | Surface Cover |
| Recommended Surface Cover | Included |
| Enclosure Material | Plastic |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Aluminum |
| Recommended Ground Bar Kit | Included |
| Standards | RoHS Compliant, UL Listed |
| Special Features | Mercury Free |
| Min. Operating Temp. | 23 deg F |
| For Use With | Square D QO Circuit Breakers |
| Cover Attachment Style | Side Hinge |
| Max. Operating Temp. | 104 deg F |
| Color | Gray |
| Cover Closure Method | Door Latch |
| Location | Outdoor |
| Number Of Circuits | 4 |
| Wiring Configuration | 3-wire |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Ground Bar Kit | grounding bar (factory installed) |
| Package Quantity | 1 |
