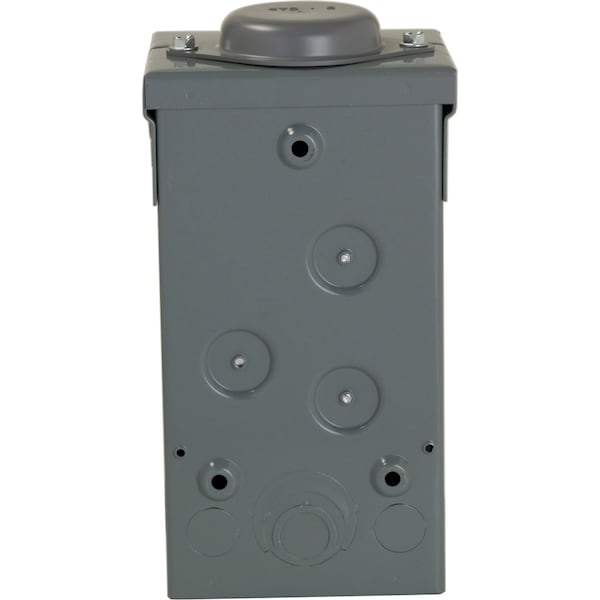

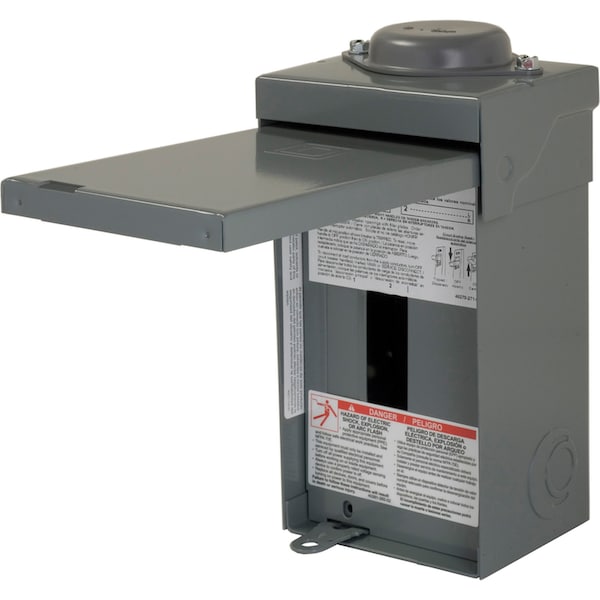

Load Center, 2 Spaces, 70A, 120/240V AC, 1 Phase
| Item | Load Center |
|---|---|
| Number of Spaces | 2 |
| Amps | 70A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Height | 238 mm |
| Width | 124 mm |
| Depth | 102 mm |
| Included Enclosure Cover | Surface Cover |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Aluminum |
| Max. Wire Size | AWG 3 aluminium , AWG 4 copper |
| Number of Poles | 2 |
| Min. Wire Size | AWG 12 aluminium,AWG 14 copper |
| Wiring Configuration | 3-wire |
| Line Rated Current | 70 A |
| Surface Finish | baked enamel Gray |
| Load Center Type | Fixed Mains |
| Short-Circuit Current | 10 kA |
| Ambient Air Temperature For Operation | -5 2°C || 40 2°C |
| Awg Gauge | AWG 12...AWG 3 aluminium || AWG 14...AWG 4 copper |
| Number Of Tandem Circuit Breakers | 2 |
| Number Of Circuits | 4 |
| Product Certifications | UL listed file E-6294 |
| Package Quantity | 1 |
