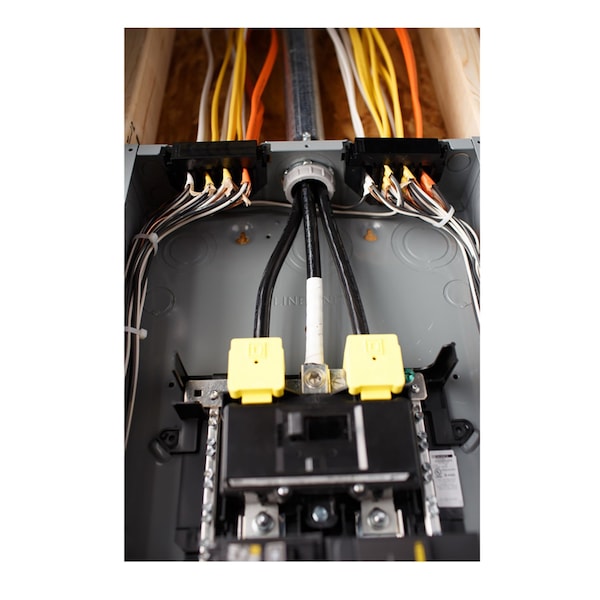

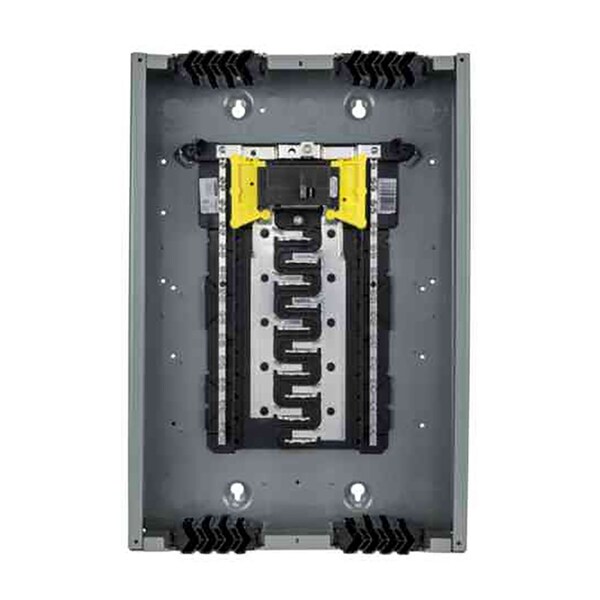

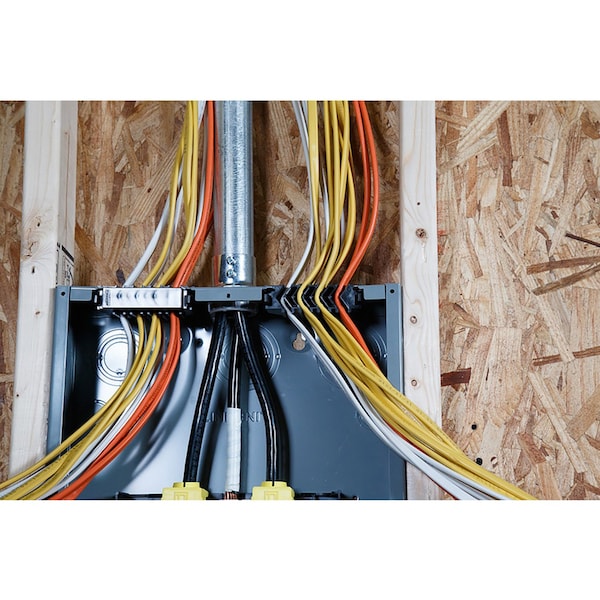

Load Center, 20 Spaces, 100A, 120/240V AC, 1 Phase
| Item | Load Center |
|---|---|
| Number of Spaces | 20 |
| Amps | 100A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Height | 455 mm |
| Width | 362 mm |
| Depth | 95 mm |
| Included Enclosure Cover | Combination |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Min. Wire Size | AWG 6 |
| Number of Poles | 20 |
| Max. Wire Size | AWG 2/0 aluminium || AWG 1 copper |
| Line Rated Current | 100 A |
| Ambient Air Temperature For Operation | -5 2°C || 40 2°C |

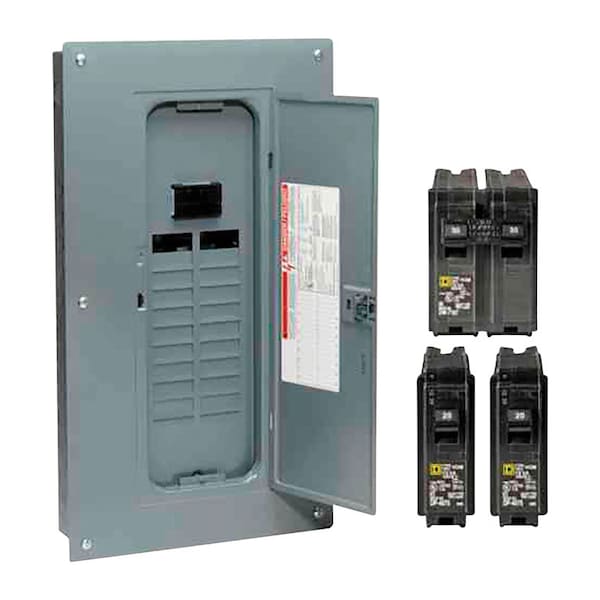

| Provided Equipment | circuit-breaker 2 ) 1P 20 A 120/240 V AC || circuit-breaker 1 ) 2P 100 A 120/240 V AC main supply ready assembled || circuit-breaker 1 ) 2P 30 A 120/240 V AC || load center 1 ) || qwik grip assembly kit 1 ) |
| Number Of Circuits | 40 |
| Load Center Type | PoN Convertible Mains |
| Device Composition | grounding bar |
| Awg Gauge | AWG 6...AWG 2/0 aluminium || AWG 6...AWG 1 copper |
| Surface Finish | baked enamel Gray |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 20 |
| Wiring Configuration | 3-wire |
| Package Quantity | 1 |
