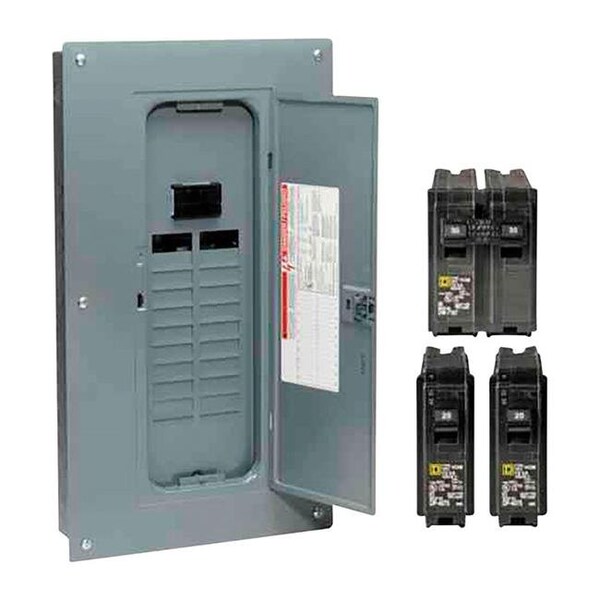

Load Center, 20 Spaces, 100A Amps, 120/240V AC
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | PoN Convertible Main Breaker |
| Number of Spaces | 20 |
| Amps | 100A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 10kA |
| Height | 455 mm |
| Width | 362 mm |
| Depth | 95 mm |
| Included Enclosure Cover | Combination |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Finish | Baked Enamel |
| Max. No. of Tandem Breakers | 20 |
| Circuit Breaker Type | Homeline |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Wiring Configuration | 3-wire |
| Wire Size | AWG 6...AWG 2/0 aluminium || AWG 6...AWG 1 copper |
| Number Of Circuits | 40 |
| Ground Bar Kit | grounding bar (ordered separately); circuit-breaker 2 ) 1P 20 A 120/240 V AC || circuit-breaker 1 ) 2P 100 A 120/240 V AC main supply ready assembled || circuit-breaker 1 ) 2P 30 A 120/240 V AC || load center 1 ) || qwik grip assembly kit 1 ) |
| Package Quantity | 1 |
