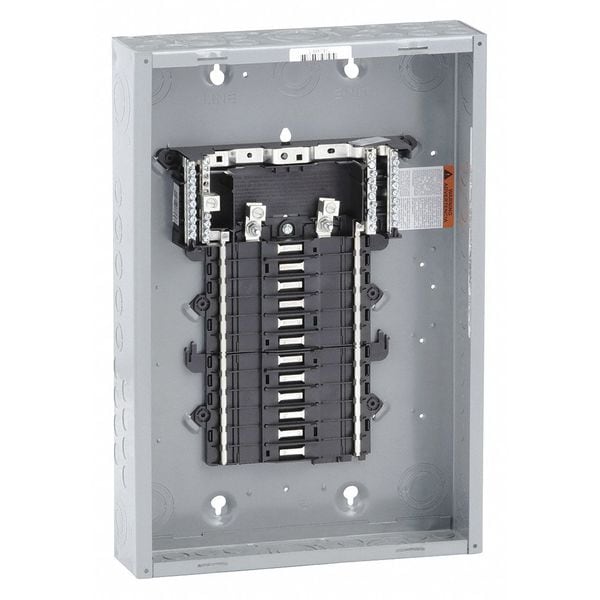

Load Center, 24 Spaces, 125 A Amps, 120/240V AC, QO Circuit Breaker Type, Indoor
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 24 |
| Amps | 125A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Circuit Breaker Type | QO |
| Short Circuit Current Rating | 65kA |
| Max. No. of Tandem Breakers | 0 |
| Height | 20.91 in |
| Width | 14-1/4 in |
| Depth | 4-1/4 in |
| Series | QO |
| Included Enclosure Cover | Order Separately |
| Recommended Surface Cover | G2590332 |
| Recommended Flush Cover | G0877922 |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Copper |
| Special Features | Mercury Free |
| Recommended Ground Bar Kit | Included |
| Standards | RoHS Compliant, UL Listed |
| Min. Operating Temp. | 23 deg F |
| For Use With | Square D QO Circuit Breakers |
| Feed Location | Top, Bottom |
| Color | Gray |
| Location | Indoor |
| Enclosure Surface Finish | Enamel |
| Max. Operating Temp. | 104 deg F |
| Wire Size | AWG 6...AWG 2/0 aluminium/copper |
| Number Of Circuits | 34 |
| Wiring Configuration | 3-wire |
| Electrical Connection | Lugs |
| Tightening Torque | main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper || Cover 20 lb.in |
| Ground Bar Kit | Grounding bar included (not installed) |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Finish | Baked Enamel |
| Package Quantity | 1 |
