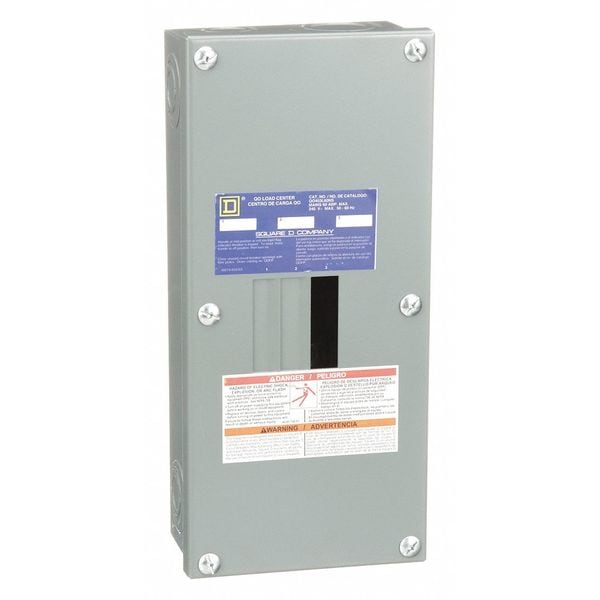

Load Center, 3 Spaces, 60A, 120/240V AC
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 3 |
| Amps | 60A |
| Voltage | 120/240V AC |
| Phase | 3 |
| Short Circuit Current Rating | 65kA |
| Height | 13.11 in |
| Width | 5.88 in |
| Depth | 3-1/2 in |
| Series | QO |
| Included Enclosure Cover | Surface Cover |
| Recommended Surface Cover | Included |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Aluminum |
| Special Features | Mercury Free |
| Recommended Ground Bar Kit | 5B718 |
| Circuit Breaker Type | QO |
| Max. No. of Tandem Breakers | 0 |
| Standards | RoHS Compliant, UL Listed |
| Feed Location | Top, Bottom |
| Max. Operating Temp. | 104 deg F |
| Enclosure Surface Finish | Enamel |
| For Use With | Square D QO Circuit Breakers |
| Cover Closure Method | Lift Off |
| Color | Gray |
| Min. Operating Temp. | 23 deg F |
| Cover Attachment Style | Screw On |
| Location | Indoor |
| Electrical Connection | Lugs |
| Wiring Configuration | 3-wire || 4-wire |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Number Of Circuits | 3 |
| Wire Size | AWG 10...AWG 6 copper |
| Tightening Torque | main lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || main lugs 50 lb.in, AWG 3...AWG 1, aluminium/copper || main lugs 40 lb.in, AWG 8...AWG 4, aluminium/copper || main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper |
| Ground Bar Kit | neutral (factory installed) |
| Box Number | 13 |
| Ambient Air Temperature For Operation | 23°F (-5°C); 104°F (40°C) |
| Product Certifications | UL Listed |
| Finish | Baked Enamel |
| Package Quantity | 1 |
