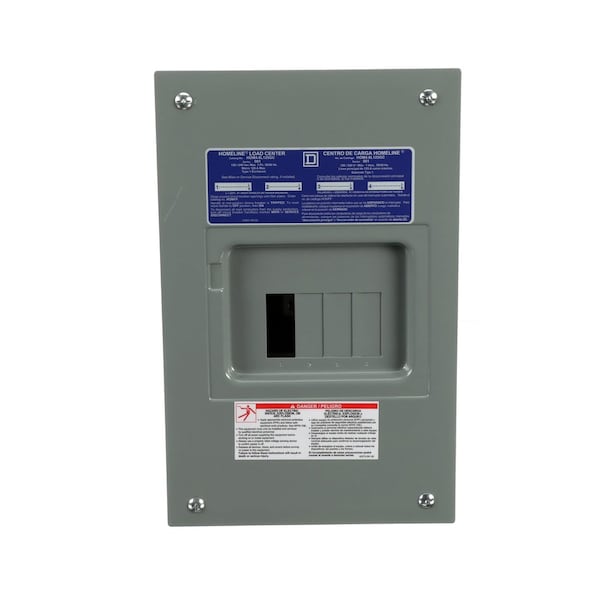

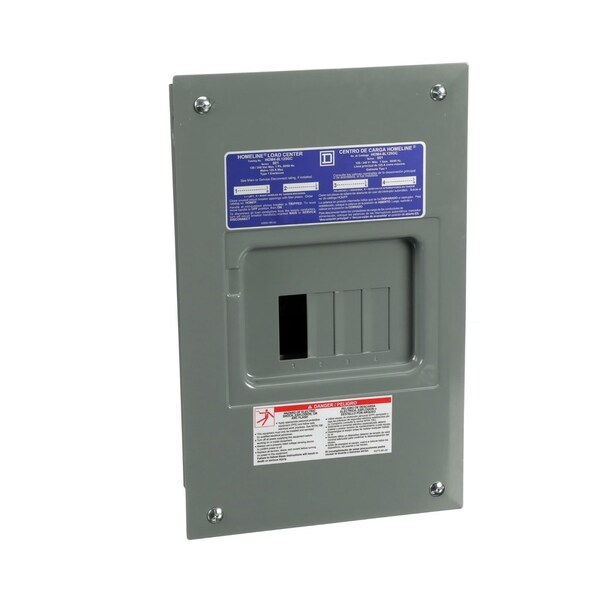

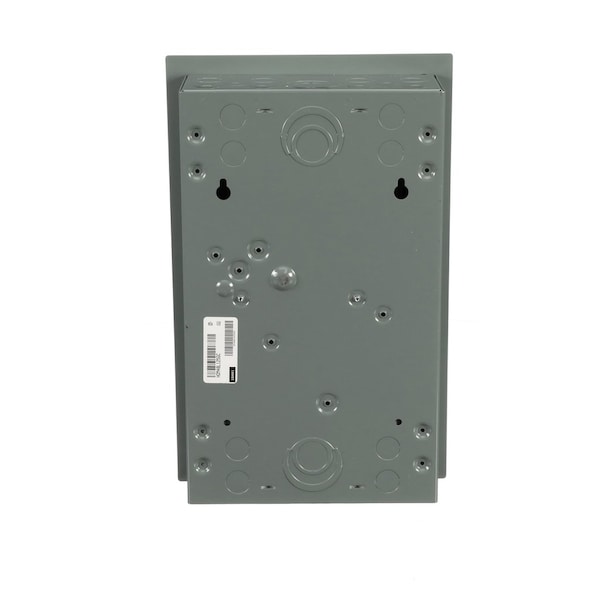

Load Center, 4 Spaces, 125A Amps, 120/240V AC
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 4 |
| Amps | 125A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 10kA |

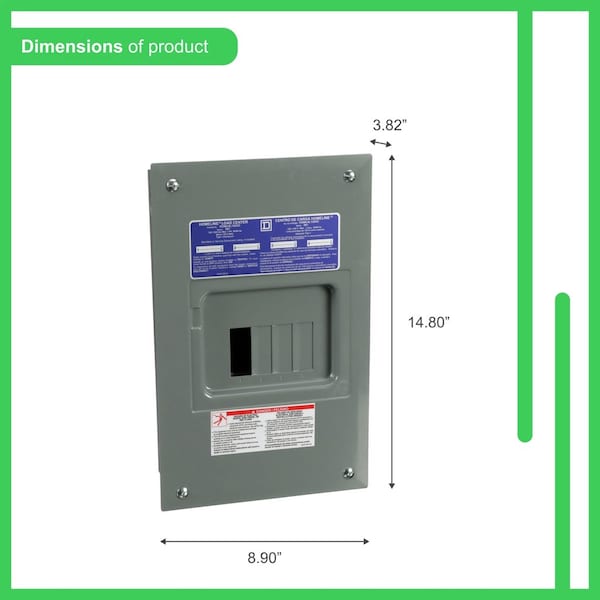

| Height | 376 mm |
| Width | 226 mm |
| Depth | 97 mm |
| Series | HOM |
| Included Enclosure Cover | Combination |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1, NEMA 3R |
| Bus Material | Aluminum |
| Circuit Breaker Type | HOM |
| Standards | UL listed file E-6294 |
| Max. No. of Tandem Breakers | 4 |
| Finish | Baked Enamel |
| Wiring Configuration | 3-wire |
| Number Of Circuits | 8 |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Ground Bar Kit | grounding bar included (not installed); grounding bar 1 ) |
| Wire Size | AWG 14...AWG 2/0 copper || AWG 12...AWG 2/0 aluminium || AWG 4...250 kcmil copper || AWG 4...300 kcmil aluminium |
| Provided Equipment | Grounding bar 1) |
| Rated Current | 125 A |
| Ground Bar | Grounding bar included (not installed) |
| Bus Rated Current | 125 A |
| Ambient Air Temperature For Operation | 23°F (-5°C); 104°F (40°C) |
| Electrical Connection | Lugs |
| Box Number | 21 |
| Package Quantity | 1 |
