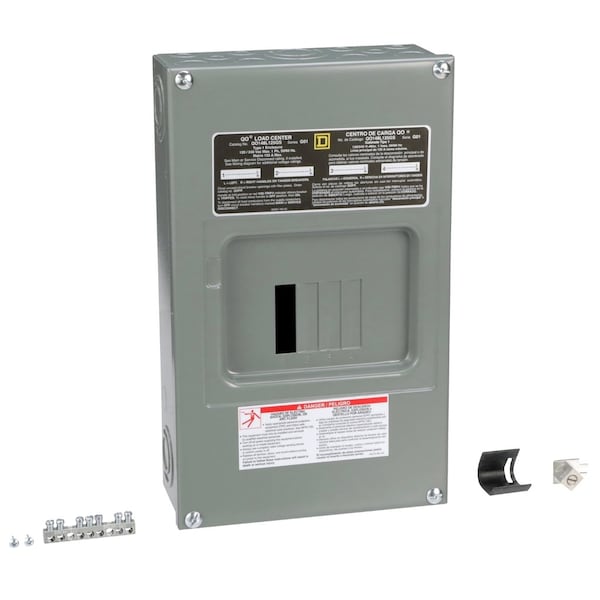

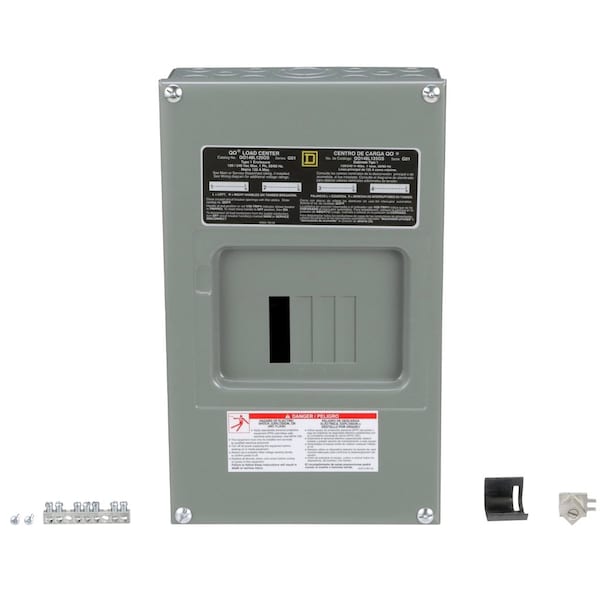

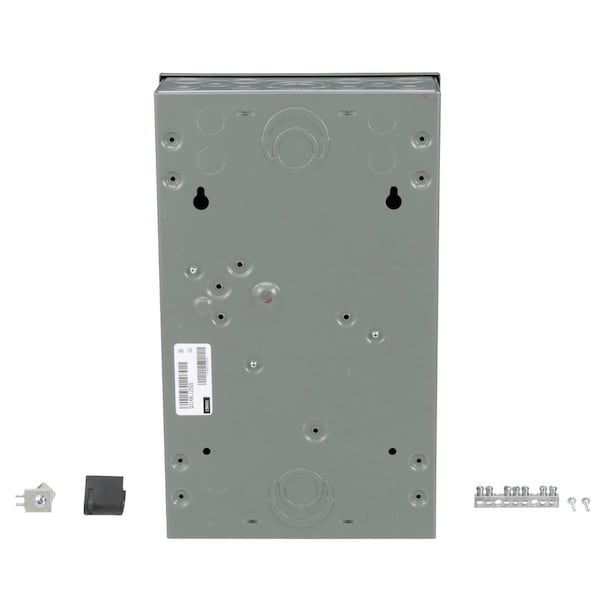

Load Center, 4 Spaces, 125A Amps, 240V
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 4 |
| Amps | 125A |
| Voltage | 240V |
| Circuit Breaker Type | QO |
| Phase | 1 |
| Short Circuit Current Rating | 10kA |
| Max. No. of Tandem Breakers | 4 |
| Height | 376 mm |
| Width | 226 mm |
| Series | QO |
| Included Enclosure Cover | Surface Cover |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Copper |
| Standards | UL Listed |
| Finish | Baked Enamel |
| Electrical Connection | Lugs |
| Tightening Torque | main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper |
| Wire Size | AWG 12...AWG 2/0 aluminium || AWG 14...AWG 2/0 copper |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Ground Bar Kit | grounding bar included (not installed) |
| Wiring Configuration | 3-wire |
| Number Of Circuits | 8 |
| Package Quantity | 1 |
