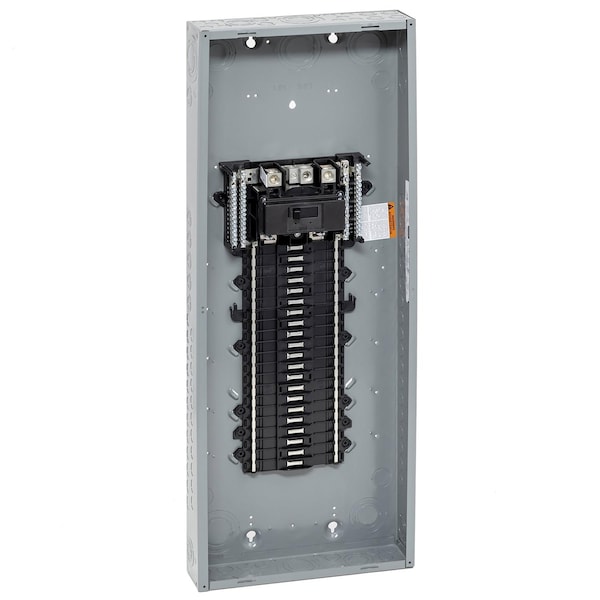

Load Center, 42 Spaces, 225A, 120/240V AC
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Circuit Breaker |
| Number of Spaces | 42 |
| Amps | 225A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 22kA |
| Height | 37.98 in |
| Width | 14-1/4 in |
| Depth | 3-3/4 in |
| Series | QO |
| Included Enclosure Cover | Order Separately |
| Enclosure NEMA Rating | NEMA 1 |
| Location | Indoor |
| For Use With | Square D QO Circuit Breakers |
| Standards | RoHS Compliant, UL Listed |
| Min. Operating Temp. | 23 deg F |
| Max. No. of Tandem Breakers | 10 |
| Circuit Breaker Type | QO |
| Special Features | Mercury Free |
| Color | Gray |
| Max. Operating Temp. | 104 deg F |
| Weight | 10 kg |
| Number Of Circuits | 52 |
| Tightening Torque | Cover 20 lb.in |
| Ground Bar Kit | grounding bar (ordered separately) |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Package Quantity | 1 |
