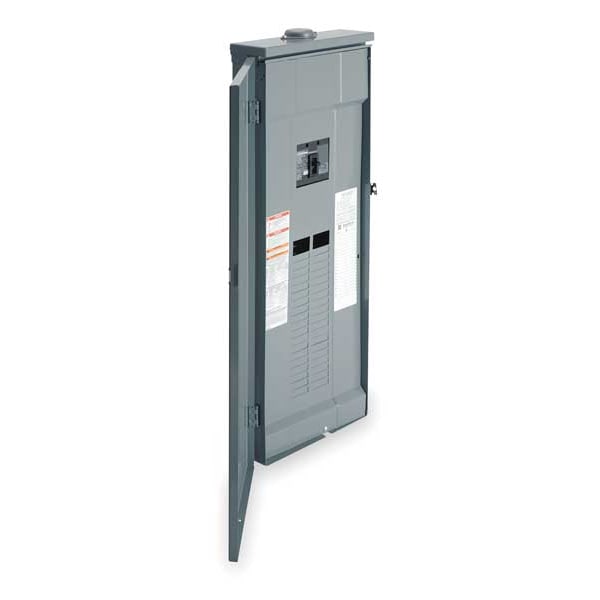

Load Center, 42 Spaces, 225A Amps, 120/240V AC
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Circuit Breaker, Convertible |
| Number of Spaces | 42 |
| Amps | 225A |
| Voltage | 120/240V AC |
| Phase | 3 |
| Short Circuit Current Rating | 25kA |
| Height | 39.38 in |
| Width | 14.77 in |
| Depth | 4-1/2 in |
| Series | QO |
| Included Enclosure Cover | Surface Cover |
| Recommended Surface Cover | Included |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Copper |
| Max. No. of Tandem Breakers | 0 |
| Standards | RoHS Compliant, UL Listed |
| Recommended Ground Bar Kit | 1D371 |
| Circuit Breaker Type | QO |
| Special Features | Mercury Free |
| For Use With | Square D QO Circuit Breakers |
| Color | Gray |
| Min. Operating Temp. | 23 deg F |
| Cover Closure Method | Door Latch |
| Cover Attachment Style | Side Hinge |
| Location | Outdoor |
| Max. Operating Temp. | 104 deg F |
| Enclosure Surface Finish | Enamel |
| Feed Location | Top, Bottom |
| Electrical Connection | Lugs |
| Ground Bar Kit | grounding bar (ordered separately) |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Box Number | 14 R |
| Wiring Configuration | 4-wire |
| Product Certifications | UL Listed |
| Wire Size | AWG 4...300 kcmil aluminium/copper |
| Number Of Circuits | 42 |
| Ambient Air Temperature For Operation | 23°F (-5°C); 104°F (40°C) |
| Package Quantity | 1 |
