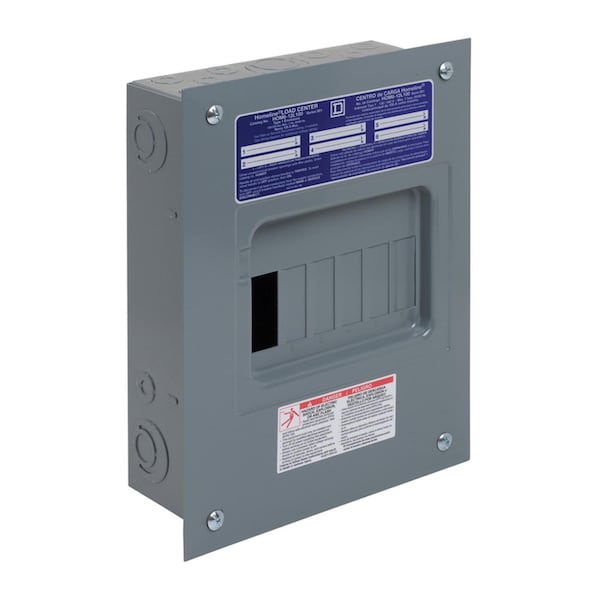

Load Center, 6 Spaces, 100A, 120/240V AC, 1 Phase
| Item | Load Center |
|---|---|
| Number of Spaces | 6 |
| Amps | 100A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Height | 319 mm |
| Width | 226 mm |
| Depth | 97 mm |
| Included Enclosure Cover | Flush Cover |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Aluminum |
| Min. Wire Size | AWG 8 |
| Number of Poles | 6 |
| Max. Wire Size | AWG 1 aluminium/copper |
| Ambient Air Temperature For Operation | -5 2°C || 40 2°C |
| Surface Finish | baked enamel Gray |
| Product Certifications | UL listed file E-6294 |
| Line Rated Current | 100 A |
| Wiring Configuration | 3-wire |
| Number Of Tandem Circuit Breakers | 6 |
| Short-Circuit Current | 10 kA |
| Load Center Type | Fixed Mains |
| Awg Gauge | AWG 8...AWG 1 copper or aluminium |
| Number Of Circuits | 12 |
| Package Quantity | 1 |
