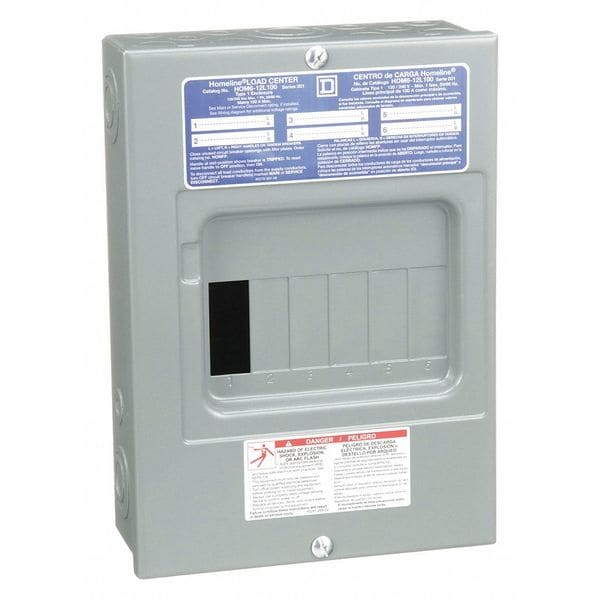

Load Center, 6 Spaces, 100A, 120/240V AC
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 6 |
| Amps | 100A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 10kA |
| Height | 12.56 in |
| Width | 8.91 in |
| Depth | 4-1/4 in |
| Series | HOM |
| Included Enclosure Cover | Surface Cover |
| Recommended Surface Cover | Included |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Aluminum |
| Special Features | Green Premium Product, Mercury Free |
| Circuit Breaker Type | HOM |
| Max. No. of Tandem Breakers | 6 |
| Standards | RoHS Compliant, UL Listed |
| Recommended Ground Bar Kit | 1D374 |
| Cover Attachment Style | Screw On |
| Min. Operating Temp. | 23 deg F |
| Location | Indoor |
| Enclosure Surface Finish | Enamel |
| For Use With | Square D HOM Circuit Breakers |
| Feed Location | Top, Bottom |
| Cover Closure Method | Door Handle |
| Color | Gray |
| Max. Operating Temp. | 104 deg F |
| Wiring Configuration | 3-wire |
| Wire Size | AWG 8...AWG 1 aluminium/copper |
| Number Of Circuits | 12 |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Finish | Baked Enamel |
| Package Quantity | 1 |
