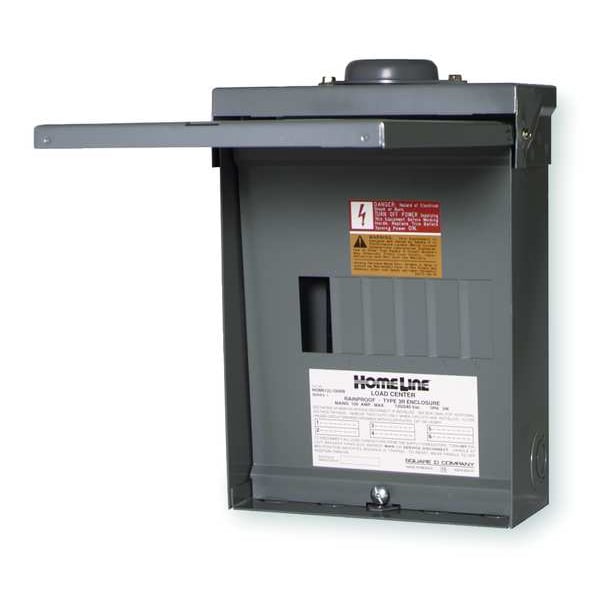

Load Center, 6 Spaces, 100A, 120/240V AC
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 6 |
| Amps | 100A |
| Voltage | 120/240V AC |
| Circuit Breaker Type | QO |
| Phase | 1 |
| Max. No. of Tandem Breakers | 6 |
| Short Circuit Current Rating | 10kA |
| Height | 12.64 in |
| Width | 8.91 in |
| Depth | 4-1/4 in |
| Series | QO |
| Included Enclosure Cover | Surface Cover |
| Recommended Surface Cover | Included |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Aluminum |
| Special Features | Green Premium Product, Mercury Free, Toxic Heavy Metal Free |
| Recommended Ground Bar Kit | 1D374 |
| Standards | RoHS Compliant, UL Listed |
| Cover Closure Method | Latch |
| Location | Outdoor |
| Feed Location | Top, Bottom |
| Max. Operating Temp. | 104 deg F |
| For Use With | Square D QO Circuit Breakers |
| Min. Operating Temp. | 23 deg F |
| Enclosure Surface Finish | Enamel |
| Cover Attachment Style | Top Hinge |
| Color | Gray |
| Wiring Configuration | 3-wire |
| Ground Bar Kit | grounding bar (ordered separately) |
| Tightening Torque | main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper |
| Wire Size | AWG 8...AWG 1 aluminium/copper |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Number Of Circuits | 12 |
| Electrical Connection | Lugs |
| Ambient Air Temperature For Operation | 23°F (-5°C); 104°F (40°C) |
| Box Number | 2 R |
| Product Certifications | UL Listed |
| Finish | Baked Enamel |
| Package Quantity | 1 |
