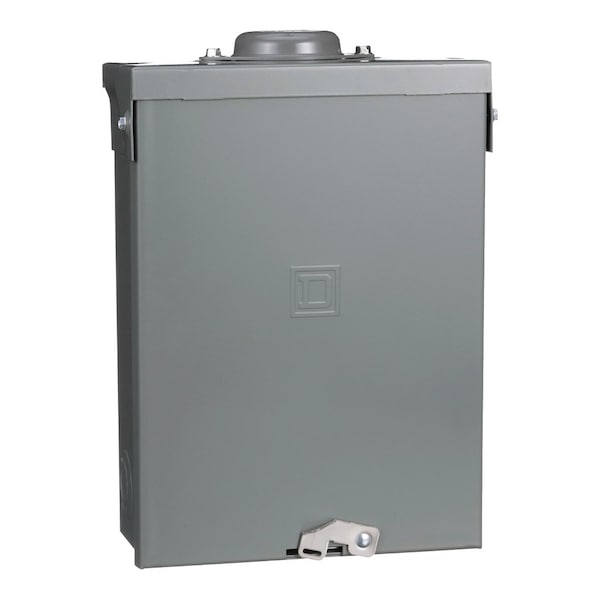

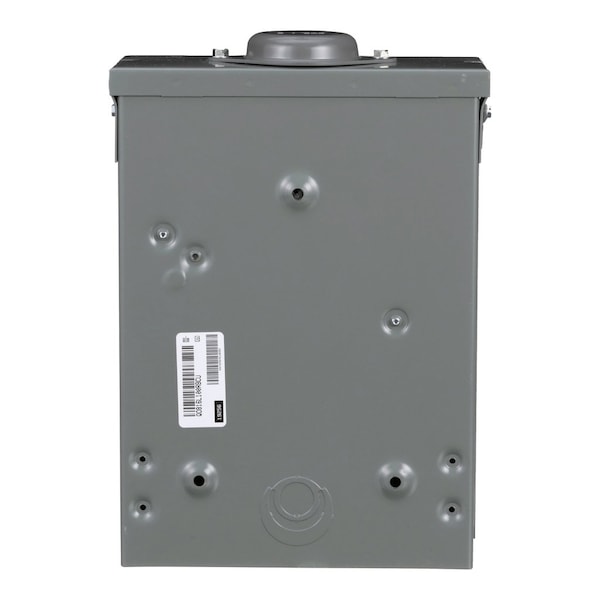

Load Center, 8 Spaces, 100A Amps, 240V
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 8 |
| Amps | 100A |
| Voltage | 240V |
| Phase | 1 |
| Circuit Breaker Type | QO |
| Max. No. of Tandem Breakers | 8 |
| Short Circuit Current Rating | 10kA |
| Height | 316 mm |
| Width | 226 mm |
| Depth | 102 mm |
| Series | QO |
| Included Enclosure Cover | Surface Cover |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Copper |
| Standards | UL Listed |
| Finish | Baked Enamel |
| Weight | 4.2 kg |
| Tightening Torque | main lugs 50 lb.in, AWG 8, aluminium/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminium/copper |
| Electrical Connection | Lugs |
| Wiring Configuration | 3-wire |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Number Of Circuits | 16 |
| Ground Bar Kit | grounding bar (ordered separately) |
| Wire Size | AWG 8...AWG 1 aluminium/copper |
| Package Quantity | 1 |
