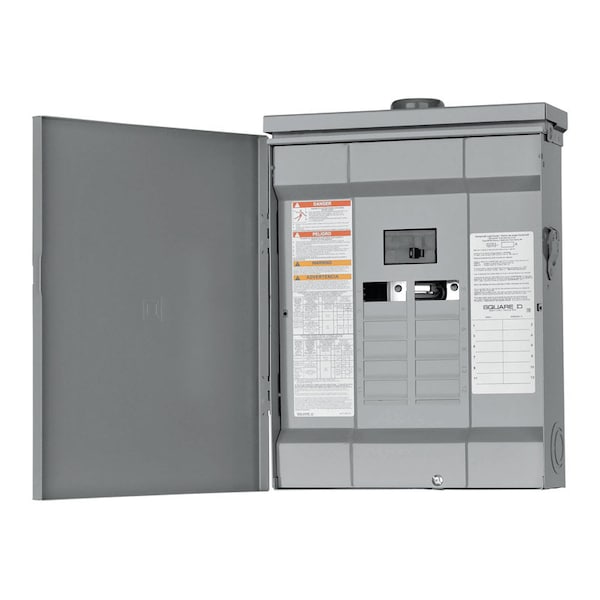

Load Center, HOM, 12 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 12 |
| Amps | 100A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 22kA |
| Height | 481 mm |
| Width | 375 mm |
| Depth | 115 mm |
| Series | HOM |
| Included Enclosure Cover | Surface Cover |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Aluminum |
| Max. Wire Size | 1 AWG (Cu), 2/0 AWG (Al) |
| Circuit Breaker Type | Mains |
| Features | Mercury Free |
| Application | Outdoor |
| Min. Wire Size | 6 AWG (Cu/Al) |
| Standards | UL Listed |
| Includes | Surface Cover; Circuit-Breaker 1 ) 2P 100 A 120/240 V Ac Main Supply Ready Assembled |
| Package Quantity | 1 |
