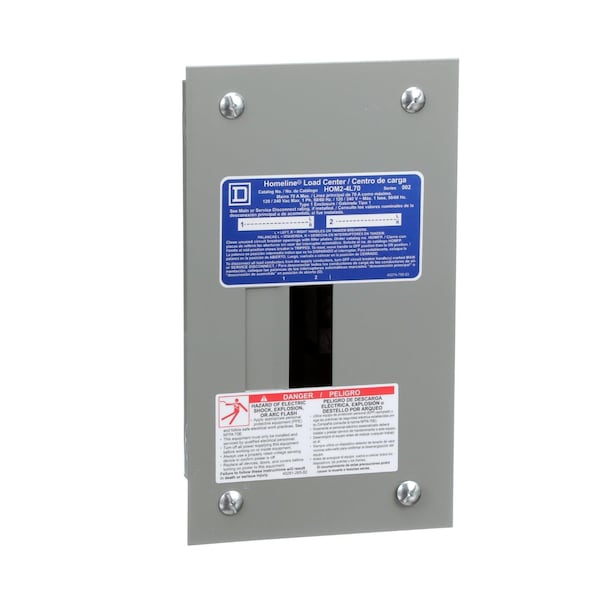

Load Center, HOM, 2 Spaces, 70A, 120/240V AC, Main Lug, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 2 |
| Amps | 70A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 10kA |
| Height | 236 mm |
| Width | 122 mm |
| Depth | 81 mm |
| Series | HOM |
| Included Enclosure Cover | Flush Cover |
| Recommended Flush Cover | Included |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1, NEMA 3R |
| Bus Material | Aluminum |
| Standards | UL listed file E-6294 |
| Max. No. of Tandem Breakers | 2 |
| Finish | Baked Enamel |
| Wiring Configuration | 3-wire |
| Number Of Circuits | 4 |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Wire Size | AWG 12...AWG 3 aluminium || AWG 14...AWG 4 copper |
| Rated Current | 70 A |
| Box Number | 2 |
| Ambient Air Temperature For Operation | 23°F (-5°C); 104°F (40°C) |
| Electrical Connection | Lugs |
| Package Quantity | 1 |
