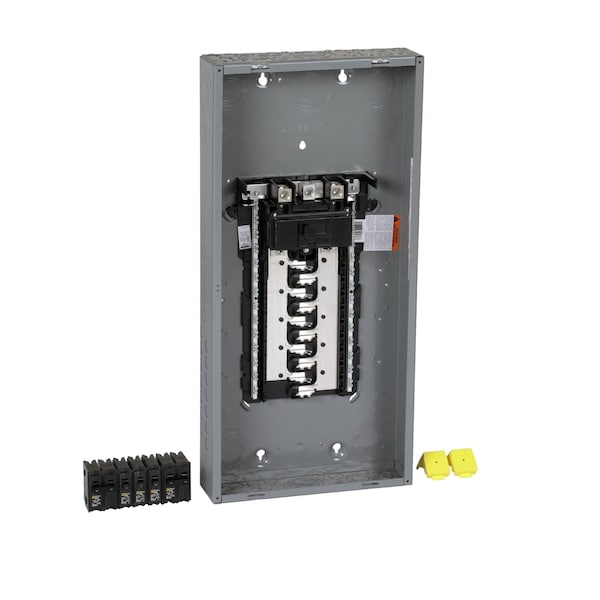

Load Center, HOM, 20 Spaces, 200A, 120/240V AC, PoN Convertible Main Breaker, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | PoN Convertible Main Breaker |
| Number of Spaces | 20 |
| Amps | 200A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 22kA |
| Height | 758 mm |
| Width | 362 mm |
| Depth | 95 mm |
| Series | HOM |
| Included Enclosure Cover | Combination |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Aluminum |
| Circuit Breaker Type | Homeline |
| Standards | UL listed file E-6294 |
| Max. No. of Tandem Breakers | 20 |
| Finish | Baked Enamel |
| Wire Size | AWG 4...250 kcmil aluminium/copper |
| Ground Bar Kit | grounding bar (ordered separately); circuit-breaker 1 ) 2P 200 A 120/240 V AC main supply ready assembled || circuit-breaker 3 ) 1P 20 A 120/240 V AC || circuit-breaker 2 ) 2P 30 A 120/240 V AC |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Wiring Configuration | 3-wire |
| Number Of Circuits | 40 |
| Package Quantity | 1 |
