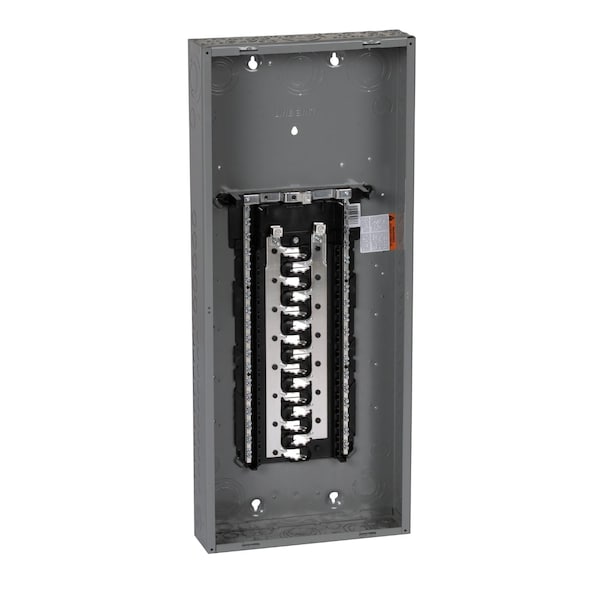

Load Center, HOM, 30 Spaces, 125A, 120/240V AC, PoN Convertible Main Lug, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 30 |
| Amps | 125A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 10kA |
| Height | 858 mm |
| Width | 362 mm |
| Depth | 95 mm |
| Series | HOM |
| Included Enclosure Cover | Combination |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Aluminum |
| Circuit Breaker Type | Homeline |
| Standards | UL listed file E-6294 |
| Max. No. of Tandem Breakers | 30 |
| Finish | Baked Enamel |
| Number Of Circuits | 60 |
| Wire Size | AWG 6...AWG 2/0 aluminium/copper |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Ground Bar Kit | grounding bar (ordered separately) |
| Wiring Configuration | 3-wire |
| Package Quantity | 1 |
