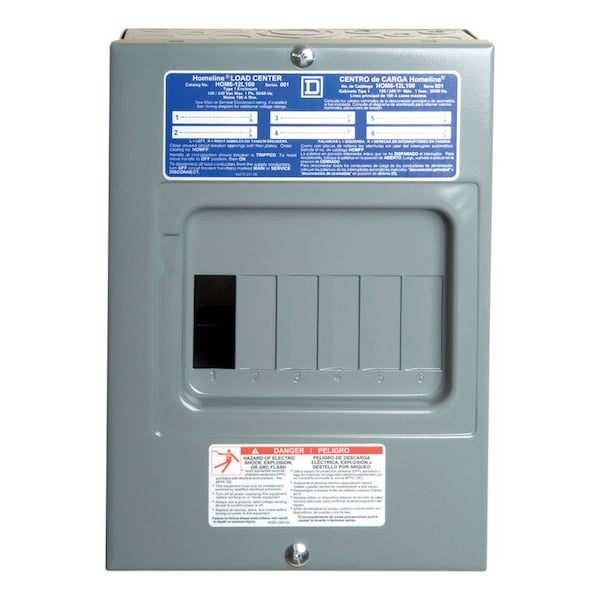

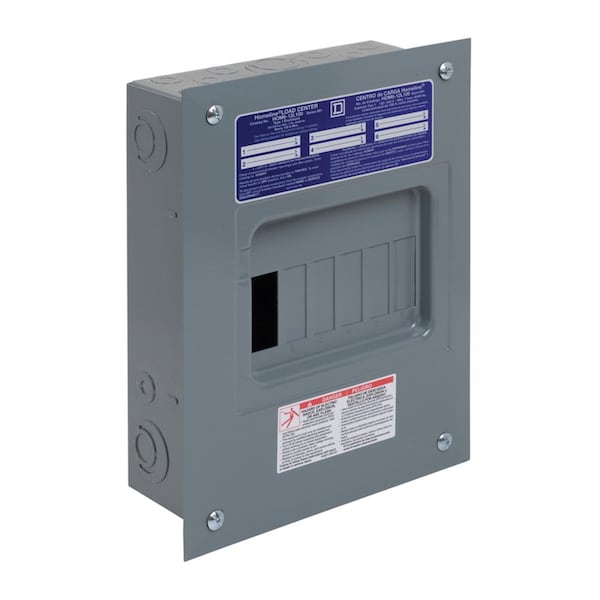

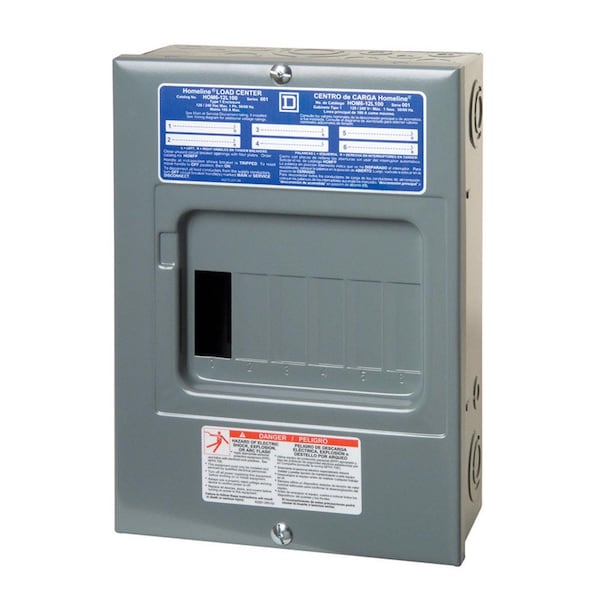

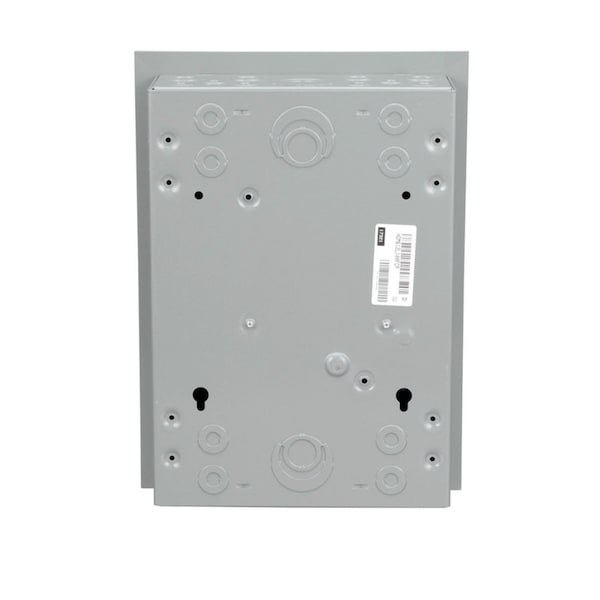

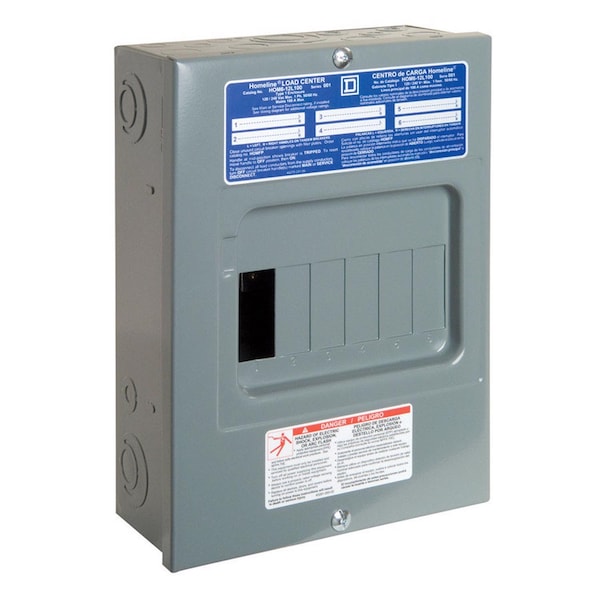

Load Center, HOM, 6 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 6 |
| Amps | 100A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 10kA |
| Height | 319 mm |
| Width | 226 mm |
| Depth | 97 mm |
| Series | HOM |
| Included Enclosure Cover | Combination |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Aluminum |
| Finish | Baked Enamel |
| Ambient Air Temperature For Operation | -5 2°C || 40 2°C |
| Awg Gauge | AWG 8...AWG 1 copper or aluminium |
| Number Of Tandem Circuit Breakers | 6 |
| Number Of Circuits | 12 |
| Wiring Configuration | 3-wire |
| Line Rated Current | 100 A |
| Product Certifications | UL listed file E-6294 |
| Package Quantity | 1 |
