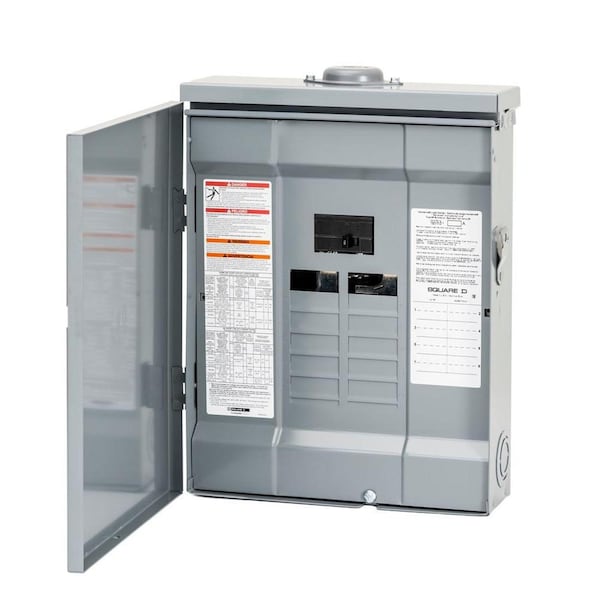

Load Center, HOM, 8 Spaces, 100A, 120/240V AC, Main Lug, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 8 |
| Amps | 100A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 22kA |
| Height | 18.94 in |
| Width | 14.76 in |
| Depth | 4.53 in |
| Series | HOM |
| Included Enclosure Cover | Surface Cover |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Aluminum |
| Max. No. of Tandem Breakers | 8 |
| Standards | UL listed file E-6294 |
| Circuit Breaker Type | Homeline |
| Wire Size | AWG 6...AWG 2/0 aluminium || AWG 6...AWG 1 copper |
| Ground Bar Kit | grounding bar (ordered separately); circuit-breaker 1 ) 2P 100 A 120/240 V AC main supply ready assembled |
| Number Of Circuits | 16 |
| Wiring Configuration | 3-wire |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Package Quantity | 1 |
