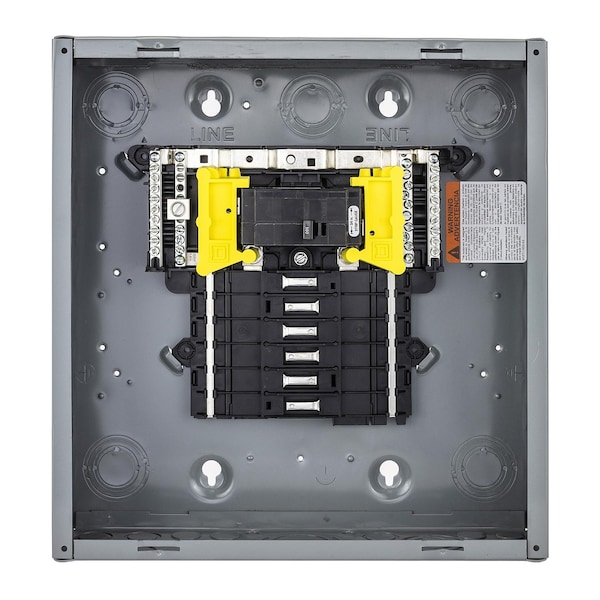

Load Center, QO, 12 Spaces, 100A, 120/240V AC, Main Circuit Breaker, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Circuit Breaker |
| Number of Spaces | 12 |
| Amps | 100A |
| Voltage | 120/240V AC |
| Circuit Breaker Type | QO |
| Phase | 1 |
| Max. No. of Tandem Breakers | 12 |
| Short Circuit Current Rating | 22kA |
| Height | 14.94 in |
| Width | 14-1/4 in |
| Depth | 3-3/4 in |
| Series | QO |
| Included Enclosure Cover | Combination |
| Recommended Surface Cover | Included |
| Recommended Flush Cover | Included |
| Enclosure NEMA Rating | NEMA 1 |
| Color | Gray |
| For Use With | Square D QO Circuit Breakers |
| Standards | RoHS Compliant, UL Listed |
| Min. Operating Temp. | 23 deg F |
| Max. Operating Temp. | 104 deg F |
| Special Features | Mercury Free |
| Location | Indoor |
| Weight | 7.32 kg |
| Tightening Torque | Cover 20 lb.in |
| Ground Bar Kit | grounding bar (ordered separately); cover |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Number Of Circuits | 24 |
| Package Quantity | 1 |
