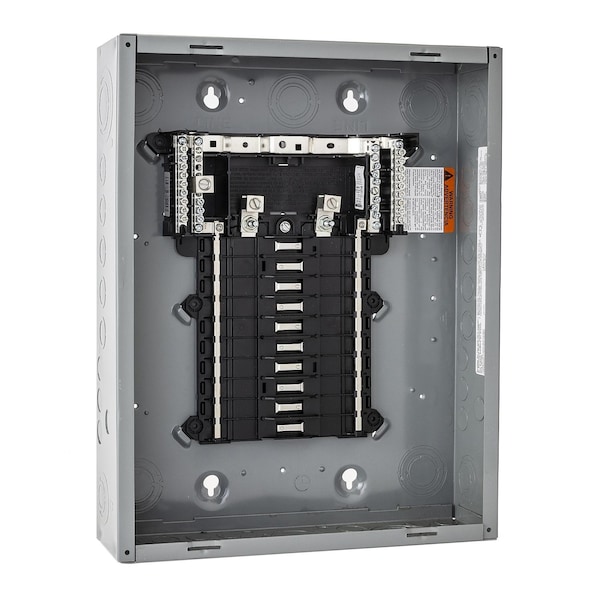

Load Center, QO, 16 Spaces, 125A, 120/240V AC, Main Lug, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 16 |
| Amps | 125A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Circuit Breaker Type | QO |
| Short Circuit Current Rating | 65kA |
| Max. No. of Tandem Breakers | 8 |
| Height | 20.94 in |
| Width | 14-1/4 in |
| Depth | 3-3/4 in |
| Series | QO |
| Included Enclosure Cover | Order Separately |
| Enclosure NEMA Rating | NEMA 1 |
| Special Features | Mercury Free |
| For Use With | Square D QO Circuit Breakers |
| Max. Operating Temp. | 104 deg F |
| Standards | RoHS Compliant, UL Listed |
| Recommended Ground Bar Kit | Included |
| Location | Indoor |
| Color | Gray |
| Min. Operating Temp. | 23 deg F |
| Weight | 5.36 kg |
| Number Of Circuits | 24 |
| Ground Bar Kit | grounding bar included (not installed); grounding bar |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Tightening Torque | Cover 20 lb.in |
| Package Quantity | 1 |
