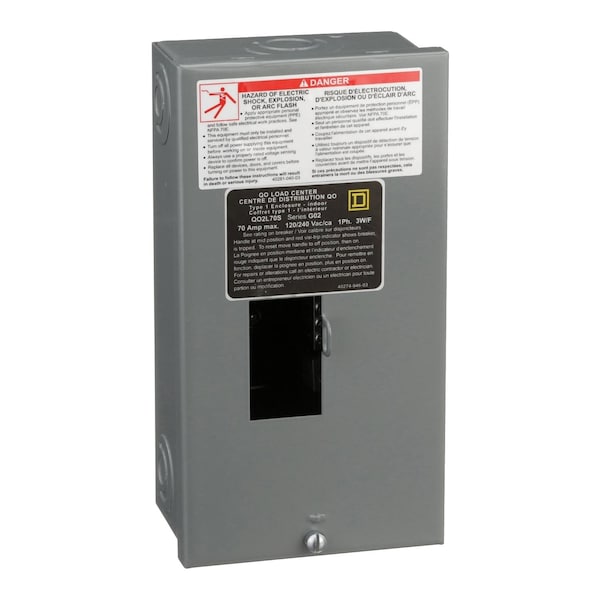

Load Center, QO, 2 Spaces, 70A, 120/240V AC, Fixed Main Lug, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 2 |
| Amps | 70A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 10kA |
| Height | 233 mm |
| Width | 119 mm |
| Depth | 79 mm |
| Series | QO |
| Included Enclosure Cover | Surface Cover |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Aluminum |
| Standards | cULus |
| Max. No. of Tandem Breakers | 0 |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Electrical Connection | Lugs |
| Wiring Configuration | 3-wire |
| Number Of Circuits | 2 |
| Ground Bar Kit | grounding bar (ordered separately) |
| Package Quantity | 1 |
