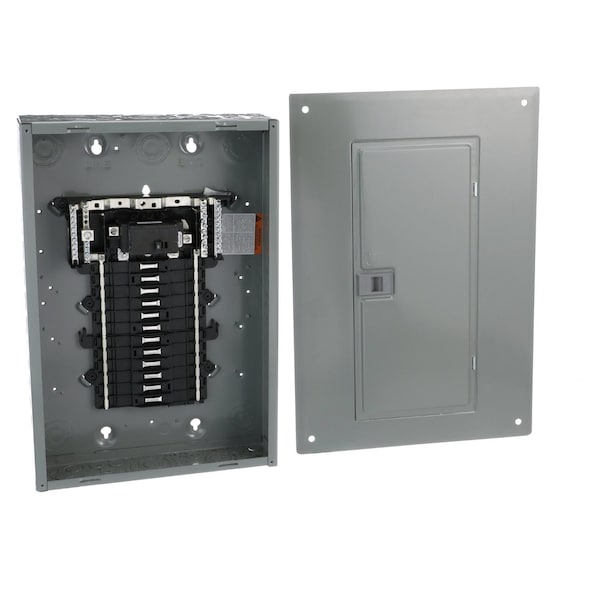

Load Center, QO, 24 Spaces, 100A, PoN Convertible Main Breaker, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | PoN Convertible Main Breaker |
| Number of Spaces | 24 |
| Amps | 100A |
| Phase | 1 |
| Short Circuit Current Rating | 22kA |
| Height | 531 mm |
| Width | 362 mm |
| Series | QO |
| Included Enclosure Cover | Combination |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Copper |
| Max. No. of Tandem Breakers | 0 |
| Standards | UL Listed |
| Finish | Baked Enamel |
| Tightening Torque | Cover 20 lb.in |
| Number Of Circuits | 24 |
| Ground Bar Kit | grounding bar (ordered separately); load center 1 ) 24P 125 A 120/240 V AC || circuit-breaker 3 ) 1P 20 A 120 V AC downstream || circuit-breaker 2 ) 2P 30 A 120/240 V AC downstream |
| Wiring Configuration | 3-wire |
| Electrical Connection | Lugs |
| Wire Size | AWG 6...AWG 2/0 aluminium/copper |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Package Quantity | 1 |
