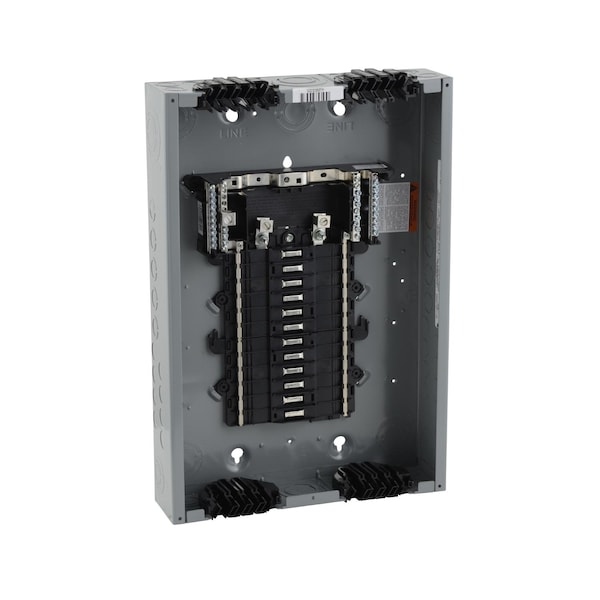

Load Center, QO, 24 Spaces, 125A, 120/240V AC, PoN Convertible Main Lug, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 24 |
| Amps | 125A |
| Voltage | 120/240V AC |
| Phase | 1 |
| Short Circuit Current Rating | 65kA |
| Height | 531 mm |
| Width | 362 mm |
| Depth | 95 mm |
| Series | QO |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Copper |
| Max. No. of Tandem Breakers | 10 |
| Standards | UL Listed |
| Finish | Baked Enamel |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Ground Bar Kit | grounding bar included (not installed); qwik grip assembly kit 1 ) |
| Tightening Torque | main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper |
| Wire Size | AWG 6...AWG 2/0 aluminium/copper |
| Number Of Circuits | 34 |
| Package Quantity | 1 |
