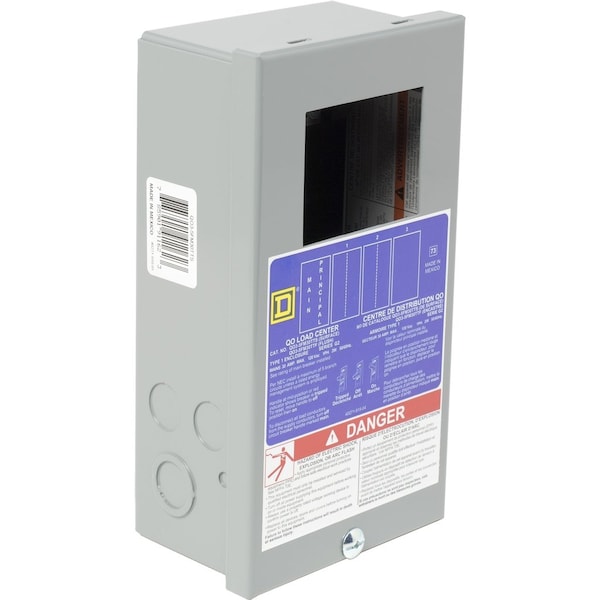

Load Center, QO, 3 Spaces, 30A, 120V, Main Circuit Breaker, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Circuit Breaker |
| Number of Spaces | 3 |
| Amps | 30A |
| Voltage | 120V |
| Phase | 1 |
| Circuit Breaker Type | QO |
| Short Circuit Current Rating | 10kA |
| Max. No. of Tandem Breakers | 2 |
| Height | 236 mm |
| Width | 122 mm |
| Depth | 80 mm |
| Series | QO |
| Included Enclosure Cover | Surface Cover |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Aluminum |
| Standards | UL Listed |
| Finish | Baked Enamel |
| Weight | 9 kg |
| Number Of Circuits | 5 |
| Ground Bar Kit | grounding bar (factory installed) |
| Tightening Torque | Cover 20 lb.in |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Electrical Connection | Lugs |
| Wire Size | AWG 14...AWG 8 aluminium/copper |
| Wiring Configuration | 2-wire |
| Rated Current | 30 A |
| Ambient Air Temperature For Operation | 23°F (-5°C); 104°F (40°C) |
| Box Number | 3 |
| Package Quantity | 1 |
