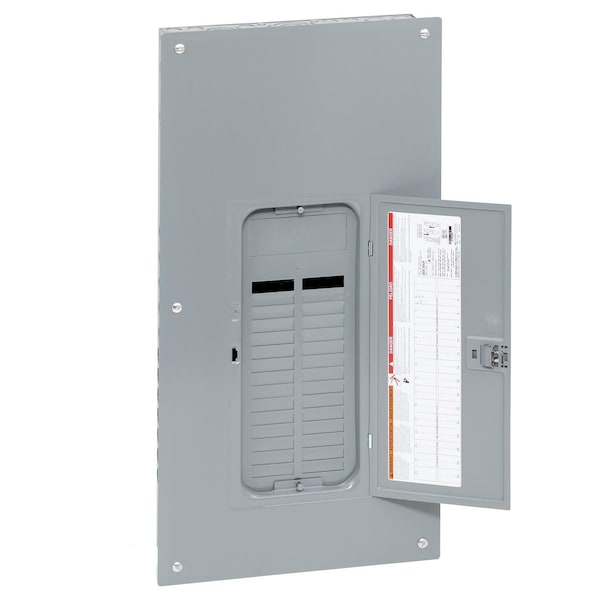

Load Center, QO, 30 Spaces, 200A, 120/240V AC, Convertible Main Lug, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 30 |
| Amps | 200A |
| Voltage | 120/240V AC |
| Circuit Breaker Type | QO |
| Phase | 1 |
| Short Circuit Current Rating | 65kA |
| Max. No. of Tandem Breakers | 10 |
| Height | 29.88 in |
| Width | 14-1/4 in |
| Depth | 3-3/4 in |
| Series | QO |
| Included Enclosure Cover | Combination |
| Recommended Surface Cover | Included |
| Recommended Flush Cover | Included |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Copper |
| Special Features | Mercury Free |
| Min. Operating Temp. | 23 deg F |
| Location | Indoor |
| Enclosure Surface Finish | Baked Enamel Gray |
| Standards | RoHS Compliant, UL Listed |
| Color | Gray |
| Max. Operating Temp. | 104 deg F |
| For Use With | Square D QO Circuit Breakers |
| Recommended Ground Bar Kit | Included |
| Weight | 12.47 kg |
| Finish | Baked Enamel |
| Ground Bar Kit | grounding bar included (not installed) |
| Tightening Torque | main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper || main lugs 250 lb.in, AWG 4...300 kcmil, aluminium/copper |
| Electrical Connection | Lugs |
| Number Of Circuits | 40 |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Wire Size | AWG 6...250 kcmil aluminium/copper |
| Wiring Configuration | 3-wire |
| Box Number | 9 |
| Product Certifications | UL Listed |
| Ambient Air Temperature For Operation | 23°F (-5°C); 104°F (40°C) |
| Package Quantity | 1 |
