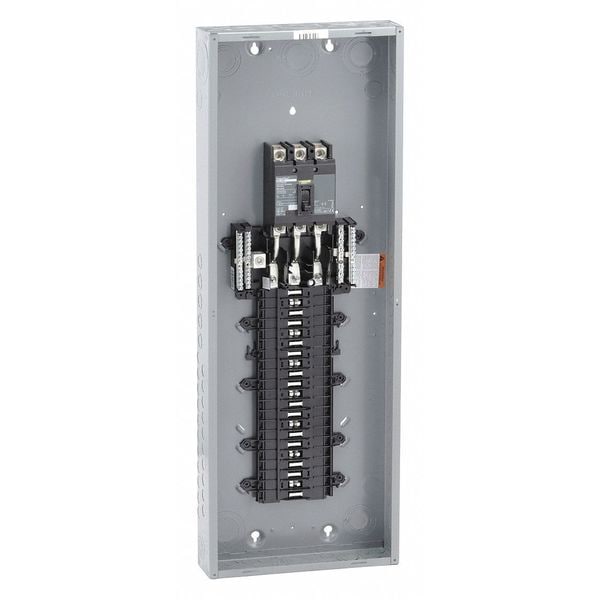

Load Center, QO, 42 Spaces, 150A, 120/240V AC, Main Circuit Breaker, 3 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Circuit Breaker |
| Number of Spaces | 42 |
| Amps | 150A |
| Voltage | 120/240V AC |
| Phase | 3 |
| Short Circuit Current Rating | 25kA |
| Height | 1,000 mm |
| Width | 362 mm |
| Series | QO |
| Included Enclosure Cover | Order Separately |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Copper |
| Max. No. of Tandem Breakers | 0 |
| Standards | UL Listed |
| Wire Size | AWG 4...300 kcmil aluminium/copper |
| Ground Bar Kit | grounding bar (ordered separately) |
| Electrical Connection | Lugs |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Wiring Configuration | 3-wire || 4-wire |
| Tightening Torque | Cover 20 lb.in |
| Number Of Circuits | 42 |
| Finish | Baked Enamel |
| Package Quantity | 1 |
