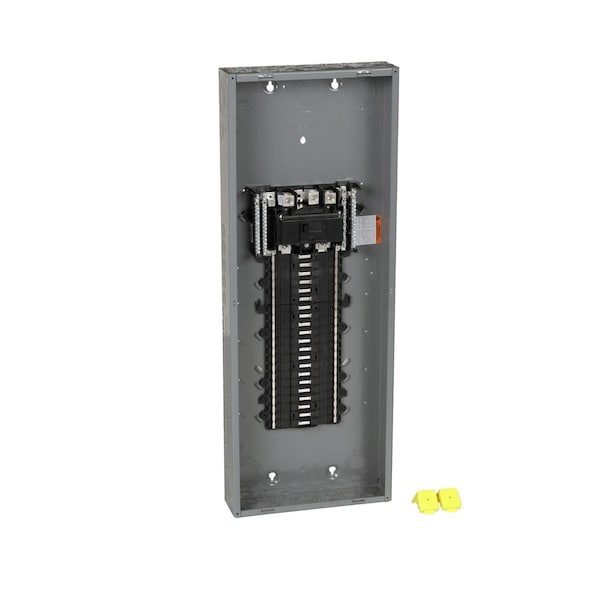

Load Center, QO, 42 Spaces, 200A, PoN Convertible Main Breaker, 1 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | PoN Convertible Main Breaker |
| Number of Spaces | 42 |
| Amps | 200A |
| Phase | 1 |
| Short Circuit Current Rating | 22kA |
| Height | 965 mm |
| Width | 362 mm |
| Series | QO |
| Included Enclosure Cover | Combination |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Bus Material | Copper |
| Max. No. of Tandem Breakers | 10 |
| Standards | UL Listed |
| Finish | Baked Enamel |
| Wiring Configuration | 3-wire |
| Wire Size | AWG 4...250 kcmil aluminium/copper |
| Tightening Torque | Cover 20 lb.in |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Number Of Circuits | 52 |
| Electrical Connection | Lugs |
| Ground Bar Kit | grounding bar (ordered separately) |
| Package Quantity | 1 |
