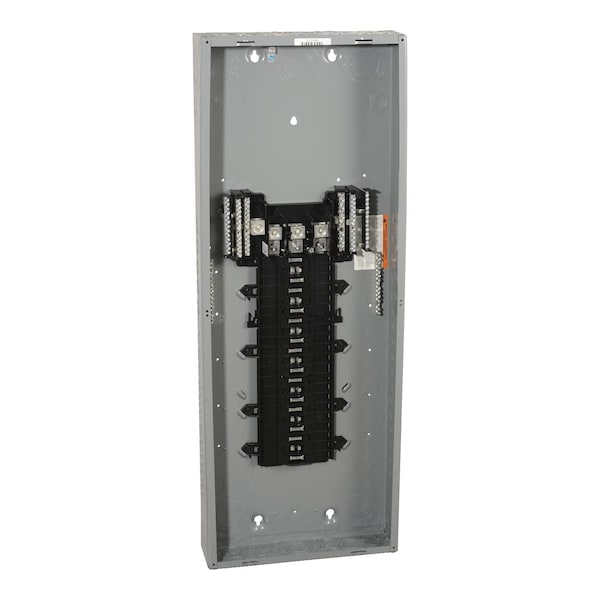

Load Center, QO, 42 Spaces, 225A, 120/240V AC, Main Lug, 3 Phase
| Item | Load Center |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 42 |
| Amps | 225A |
| Voltage | 120/240V AC |
| Phase | 3 |
| Height | 38 in |
| Width | 14.2 in |
| Depth | 3.7 in |
| Series | QO |
| Included Enclosure Cover | Order Separately |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 1 |
| Max. No. of Tandem Breakers | 0 |
| Standards | cULus |
| Finish | Baked Enamel |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Wire Size | AWG 4...300 kcmil aluminium/copper |
| Number Of Circuits | 42 |
| Tightening Torque | main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper || Cover 20 lb.in |
| Ground Bar Kit | grounding bar (ordered separately) |
| Wiring Configuration | 4-wire |
| Electrical Connection | Lugs |
| Package Quantity | 1 |
