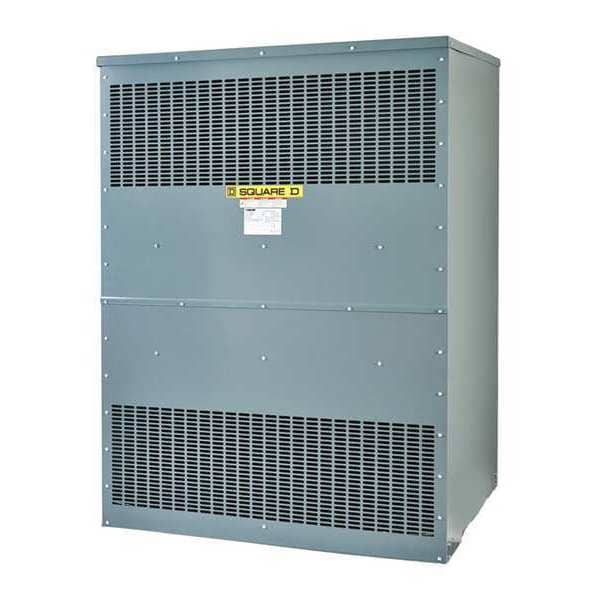

Low Voltage Distribution Transformer, 500 kVA, NEMA 1, 150°C, 120/208V AC, 600V AC
| Item | Low Voltage Distribution Transformer |
|---|---|
| Input Voltage - Transformer | 600V AC |
| Mounting - Transformer | Floor |
| Hz - Electrical | 60 |
| IP Rating | Not Applicable |
| Outdoor Rated - Transformer | No |
| Winding Material | Aluminum |
| Enclosure Rating | NEMA 1 |
| Knockout Size - Transformer | No Knockout |
| Phase - Electrical | 3 |
| Standards | REACH Regulation, RoHS |
| Voltage Function - Transformer | Step Down |
| Height | 71 in |
| Width | 48.26 in |
| Depth | 37.89 in |
| Winding Material - Transformer | Aluminum |
| VA Rating - Transformer | 500 kVA |
| Output Voltage - Transformer | 120/208V AC |
| Temp. Rise | 150 deg C |
| Includes | Not Applicable |
| Ambient Air Temperature For Operation | 40-40°C |
| Device Short Name | DOE 2016 |
| Material | Aluminium |
| Type Of Cooling | natural convection |
| Number Of Tap-Offs | 2 2.5 % FCAN || 2 2.5 % FCBN |
| Average Ambient Air Temperature For Operation | 30°C |
| Device Application | low voltage electrical distribution |
| Electrical Connection | 4 Hole Nema Pad primary 11.1 mm || 6 Hole Nema Pad secondary 11.1 mm || 8 Hole Nema Pad sec - XO 11.1 mm |
| Primary Voltage | 600 V delta |
| [Uimp] Rated Impulse Withstand Voltage | 10 kV |
| Noise Level | 6 dB NEMA ST-20 || 56 dB |
| Degree Of Protection | UL type 1 || UL type 2, with 7400DS30J || UL type 3R, with 7400WS30J |
| Rated Operational Power In Va | 500 kVA |
| Box Number | 30J |
| Sound Level | 6 dB NEMA ST-20; 56 dB |
| Includes Knockouts | No Knockouts |
| Package Quantity | 1 |
