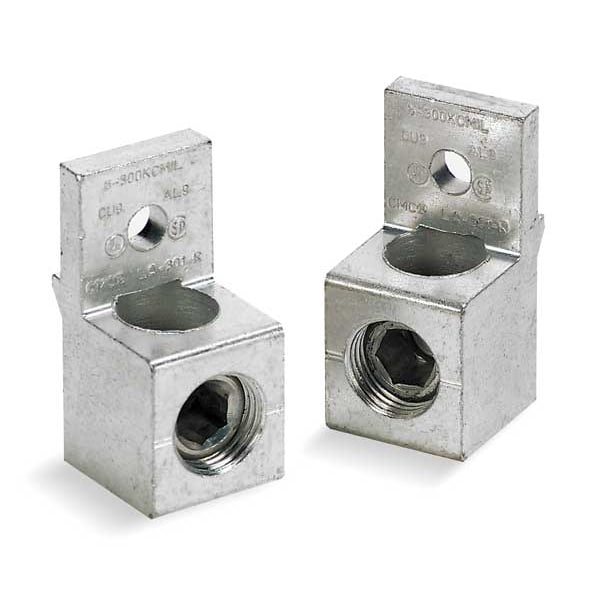

Lug Kit, Homeline and QO Load Centers, 125A
| Item | Lug Kit |
|---|---|
| For Use With | Homeline and QO Load Centers |
| Amps | 125A |
| Max. Wire Size | 2/0 AWG |
| Min. Wire Size | 6 AWG |
| Amps AC | 125 A |
| Includes | (1) 1/4-20 Bonding Screw for S01 Series, (1) 10-32 Bonding Screw for G01 Series, (1) Service Disconnect Label, (2) Connector Mounting Nuts, (2) Main Lugs |
| Phase | 1 phase |
| Number of Lugs Included | 2 |
| Features | Mercury Free |
| Tightening Torque | 8.5 N.m |
| Wire Size | AWG 4 to 300 kcmil aluminium; AWG 4 to 300 kcmil copper |
| Product Line | QO |
| Package Quantity | 1 |
