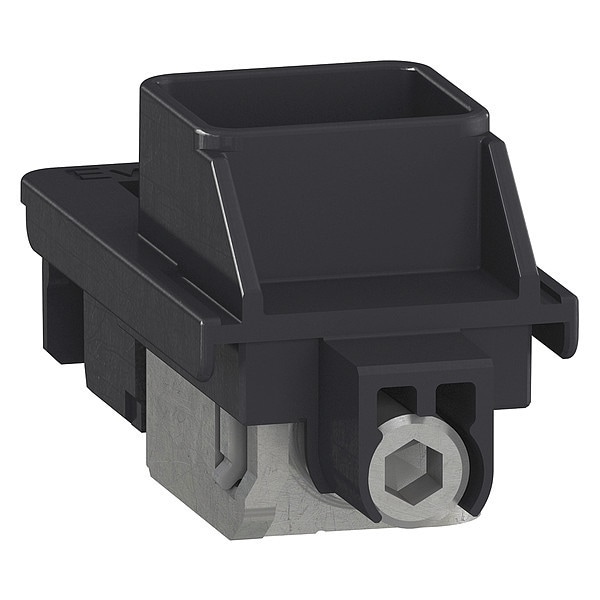

Lug Kit, Powerpact(R) B Circuit Breakers, 125A, 1 Poles
| Item | Lug Kit |
|---|---|
| For Use With | Powerpact(R) B Circuit Breakers |
| Amps | 125A |
| Number of Poles | 1 |
| Max. Wire Size | 2/0 AWG (fine stranded), 3/0 AWG (stranded) |
| Min. Wire Size | 14 AWG, 6 AWG |
| Conductor Material | Steel |
| Includes | (1) EverLink Lug Connector Kit |
| Number of Lugs Included | 1 |
| Product Or Component Type | cable connector |
| Location Of Connection | upstream || downstream |
| Range Compatibility | PowerPact (PowerPact B) |
| Device Short Name | connectors |
| Connections - Terminals | screw terminal - 1 2.5-95 mm2² AWG 14...AWG 3/0) - solid || screw terminal 2.5-95 mm2² AWG 14...AWG 3/0) - stranded || screw terminal 2.5-70 mm2² AWG 6...AWG 2/0) - fine stranded |
| Line Rated Current | 15-125 A copper || 15-100 A aluminium |
| Package Quantity | 1 |
