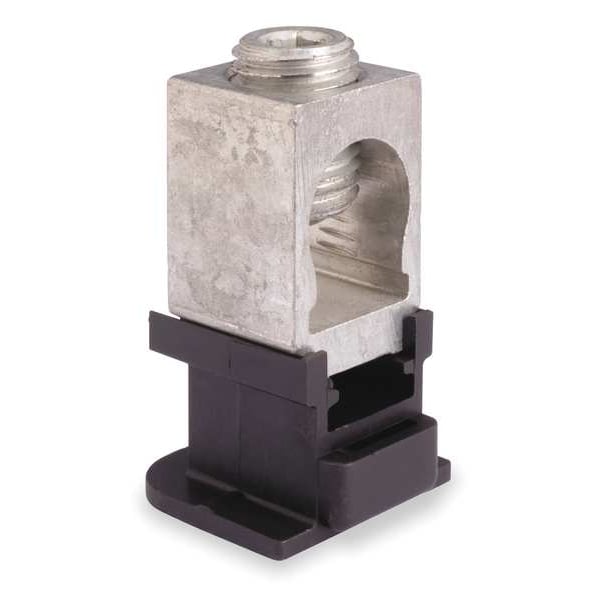

Lug Kit, Powerpact(R) H, J and L Frame Circuit Breakers, 600V AC, 150A, 3 Poles
| Item | Lug Kit |
|---|---|
| For Use With | Powerpact(R) H, J and L Frame Circuit Breakers |
| Voltage | 600V AC |
| Amps | 150A |
| Number of Poles | 3 |
| Max. Wire Size | 500 kcmil |
| Min. Wire Size | 14 AWG |
| Includes | (3) Mechanical Lug |
| Material | Aluminium |
| Width | 0.874 in |
| Height | 1.4 in |
| Series | H-Frame/J-Frame/L-Frame |
| Number of Lugs Included | 3 |
| Tightening Torque | 5-5 N.m 2.5-6 mm2² (AWG 14...AWG 10) |
| Mounting Mode | unit mount |
| Product Or Component Type | mechanical lug |
| Depth | 0.765 in |
| Line Rated Current | 150-400 A |
| Product Compatibility | PowerPact H PowerPact || PowerPact J PowerPact || PowerPact L PowerPact |
| Location Of Connection | downstream |
| Product Certifications | UL || CSA |
| Kcmil Size | 500 kcmil |
| Package Quantity | 3 |
