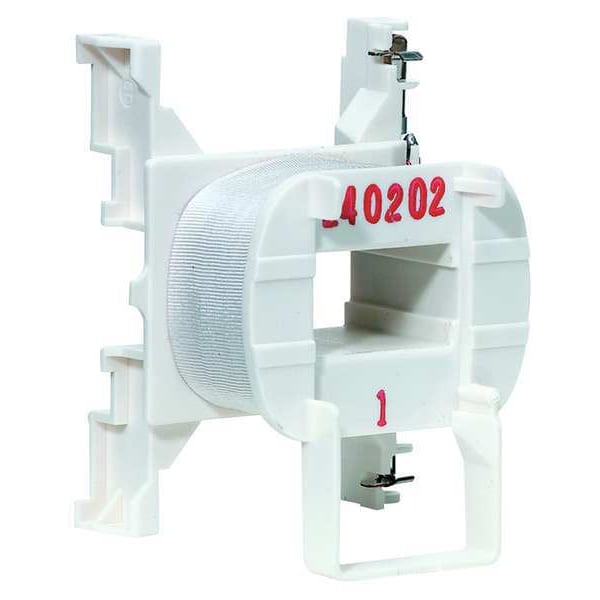

Bobina magnética, IEC, 208VCA, 50/60 Hz.
| Item | Replacement Coil |
|---|---|
| Coil Volts | 208 V AC |
| VA Rating | 70 |
| For Use With | LC1D09-32 and LC1DT20-40 Series Contactors |
| Hz | 50/60 |
| Contactor Type | IEC |
| Average Resistance | 430.4 Ohm 20 °C |
| Inductance Of Closed Circuit | 16 H |
| Device Short Name | LXD1 |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Inrush Power In Va | 70-70 VA 60 Hz 0.75 20 °C) || 70-70 VA 50 Hz 0.75 20 °C) |
| Control Circuit Type | AC 50/60 Hz |
| Coil Technology | without built-in suppressor module |
| Mechanical Durability | 15 Mcycles |
| Product Or Component Type | contactor coil |
| Control Circuit Voltage Limits | drop-out 0.3 to 0.6 Uc 50/60 Hz 60 °C) || operational 0.8 to 1.1 Uc 50 Hz 60 °C) |
| Range | TeSys |
| Heat Dissipation | 2-3 W 50/60 Hz |
| [Uc] Control Circuit Voltage | 208 V AC 50/60 Hz |
| Product Compatibility | CAD || LC1DT20 to DT40 || LC1D09 to D38 |
| Hold-In Power Consumption In Va | 7.5-7.5 VA 60 Hz 0.3 20 °C) || 7-7 VA 50 Hz 0.3 20 °C) |
| Ambient Air Temperature For Operation | -5-60 °C |
| NEMA Size | Not Applicable |
| Frequency | 50/60 Hz |
| Compatible with Series | CAD Relays, LC1D09 to D38 Contactors, LC1DT20 to DT40 Contactors, TeSys Deca |
| Contactor Style | IEC |
| Coil Voltage | 208V AC |
| Coil Power | 70 VA |
| Package Quantity | 1 |
