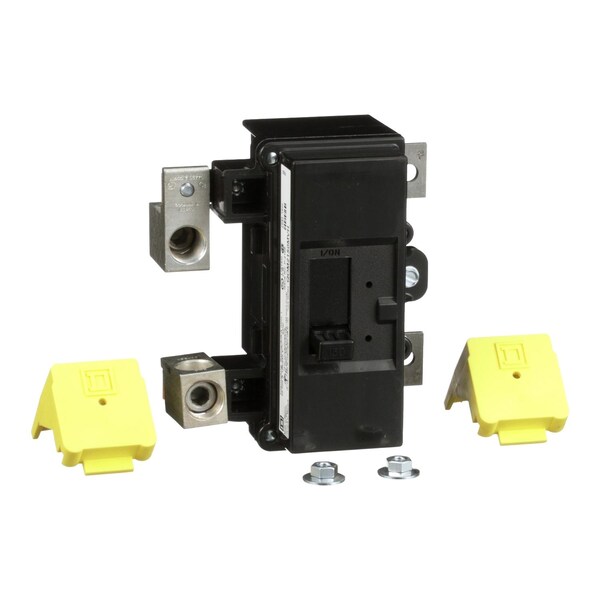

Main breaker, QO, 150A, 2 pole, 120/240VAC, 22kA, bolt on, for metering devices
| Item | Mini CB,QO,150 A,2P,120/240 V,22 kA |
|---|---|
| Voltage | 120/240V AC; 120V AC |
| Max. Amps | 150 |
| Phase | 1 phase |
| Width | 129 mm |
| Depth | 91 mm |
| Height | 142 mm |
| Standards | UL Listed; CSA |
| Description/Special Features | Mercury Free |
| Mounting Mode | bolt-on |
| Ambient Air Temperature For Operation | 40°C |
| Range of Product | QO |
| Circuit Breaker Application | primary main breaker |
| Product or Component Type | miniature circuit-breaker |
| Poles Description | 2P |
| [Ue] Rated Operational Voltage | 120/240 V AC, 120 V AC |
| Load Center Type | Main breaker |
| Device Short Name | QOM2 |
| Product Destination | load center QO |
| Breaking Capacity | 22 kA 120/240 V AC, 22 kA 120 V AC |
| Tightening Torque | 6-6 N.m 4-65 mm² (AWG 12...AWG 2/0) |
| Electrical Connection | lugs |
| Awg Gauge | AWG 4...300 kcmil copper or aluminium |
| Package Quantity | 1 |
