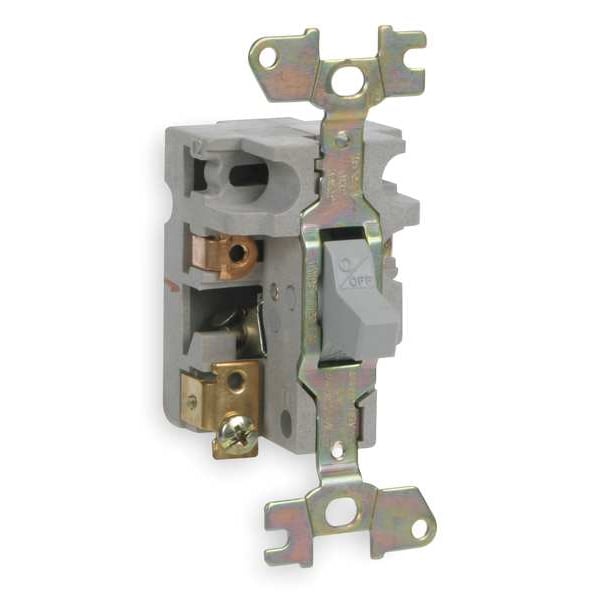

Arrancador de motor manual, de 56 a 80 amperios, 600 voltios.
| Operator | Switch |
|---|---|
| Enclosure NEMA Rating | No Enclosure |
| Number of Required Thermals | 1 |
| Depth | 1.06 in |
| Height | 2.34 in |
| Amps AC | 16 A |
| Item | Manual Motor Starter |
| Width | 4.12 in |
| Number of Poles | 1 |
| Max. Voltage | 600V AC |
| HP @ 1 Phase - 120V | 1 hp |
| Pilot Light | No |
| HP @ 1 Phase - 230V | 1 hp |
| Standards | CSA LR25490, E42243 CCN NLRV, UL Listed |
| Description/Special Features | Stainless Steel Flush Plate |
| Phase Loss Sensitivity | No |
| Local Signalling | no indicator |
| Control Type | toggle switch |
| Thermal Overload Type | melting alloy |
| Cable Entry | without |
| Product Certifications | UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05 |
| Phase | Single |
| Awg Gauge | AWG 14...AWG 12 copper |
| Nema Degree Of Protection | not rated (flush plate) Stainless Steel standard size |
| Maximum Horse Power Rating | 1 hp 115 V AC || 1 hp 230 V AC || 1 hp 277 V AC |
| Motor Starter Type | non reversing |
| [Ue] Rated Operational Voltage | 277 V AC |
| Electrical Connection | Screw Clamp Terminals |
| Poles Description | 1P |
| Line Rated Current | 16 A |
| Reset | Manual |
| Product Or Component Type | Single Unit Manual Starter |
| Maximum Voltage Rating | 277 V AC |
| Minimum Overload Relay Current Setting | Not Applicable |
| Includes Pilot Light | No |
| Starter Style | NEMA |
| NEMA Enclosure Rating | No Enclosure |
| Overall Width | 2-3/4 in |
| Status Indicator | No Indicator |
| Overload Protection Type | Thermal |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Current AC | 16 A |
| Overall Depth | 2.19 in |
| Terminal Connection Type | Screw Terminals |
| Maximum Overload Relay Current Setting | Not Applicable |
| Horsepower @ 230V DC | 0.75 HP |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Series | Class 2510 F Series |
| Overall Height | 4-1/2 in |
| Package Quantity | 1 |
