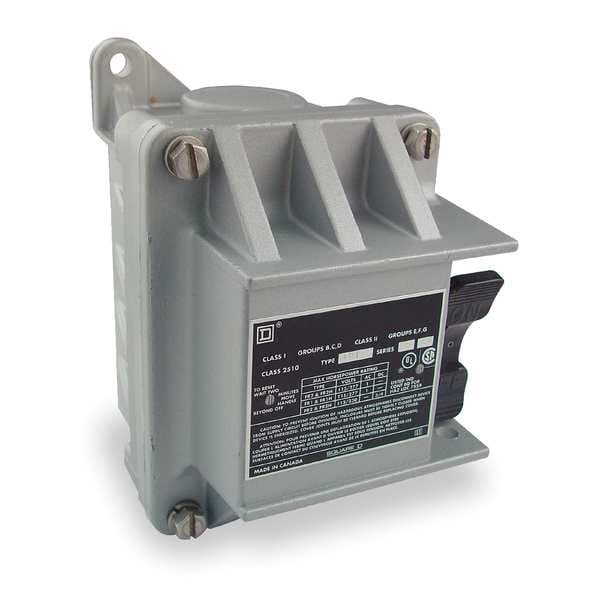

Arrancador manual de motor, de 9 a 14A, 600VCA.
| Operator | Push Button |
|---|---|
| NEMA Size | M-1 |
| Type | M |
| Enclosure NEMA Rating | 7, 9 |
| Depth | 5-3/4 in |
| Number of Required Thermals | 3 |
| Frame Size | Not Applicable |
| Height | 10-3/4 in |
| Amps AC | 27 A |
| Width | 5-3/4 in |
| Item | Manual Motor Starter |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 10 hp |
| Max. Voltage | 600V AC |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| Pilot Light | No |
| Thermal Unit Code | N2 |
| Description/Special Features | Melting Alloy Thermal Overload Relays |
| Standards | CSA LR60905, E42243 CCN NLRV, UL Listed |
| HP @ 3 Phase - 460-575V | 10 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Phase Loss Sensitivity | No |
| Local Signalling | no indicator |
| Auxiliary Contact Composition | without |
| Product Or Component Type | Manual Starter |
| Thermal Overload Type | melting alloy |
| Number Of Thermal Units Required | 3 |
| Motor Starter Type | non reversing |
| Electrical Connection | pressure wire clamp |
| Awg Gauge | AWG 14...AWG 8 copper |
| Poles Description | 3P |
| Maximum Horse Power Rating | 7.5-7.5 hp 200...230 V AC, 3 phase || 10-10 hp 380...575 V AC, 3 phase |
| Nema Degree Of Protection | NEMA 7/9 cast iron |
| [Ue] Rated Operational Voltage | 600 V AC |
| Product Certifications | UL listed file E58760 CCN NPXZ || CSA LR26817 class 3218 04 |
| Control Type | push-button |
| Maximum Overload Relay Current Setting | Not Applicable |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Includes Pilot Light | No |
| Status Indicator | No Indicator |
| Hazardous Location Specification | Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G |
| Series | Class 2510 M Series |
| Minimum Overload Relay Current Setting | Not Applicable |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Overall Depth | 6.13 in |
| Terminal Connection Type | Screw Clamp Terminals |
| NEMA Enclosure Rating | 7, 9 |
| IP Rating | Not Applicable |
| Current AC | 27 A |
| Mounting Hole Distance - Width | 4.69 in |
| Starter Style | NEMA |
| Overload Protection Type | Thermal |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Overall Width | 6 in |
| Phase | Three |
| Mounting Hole Distance - Height | 9.94 in |
| Overall Height | 10-1/2 in |
| Maximum Voltage Rating | 600 V AC |
| Wire Gauge | AWG 14 to AWG 8 copper |
| Certifications | UL listed file E58760 CCN NPXZ; CSA LR26817 class 3218 04 |
| Horsepower Rating | 7.5 hp 200 to 230 V AC, 3 phase; 10 hp 380 to 575 V AC, 3 phase |
| Package Quantity | 1 |
