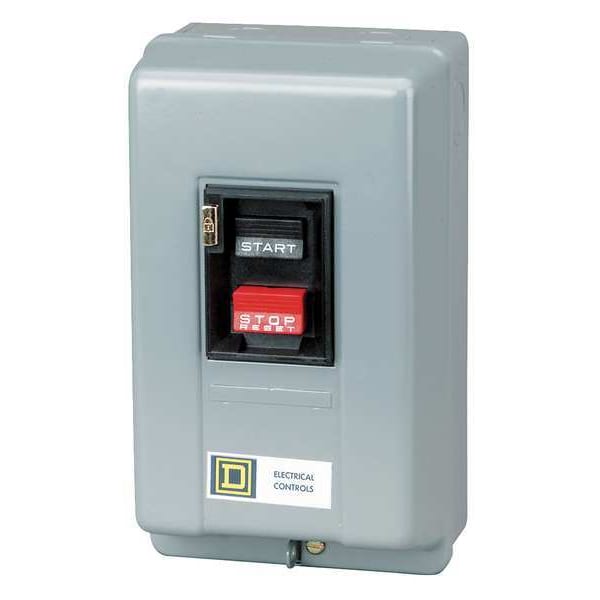

Arrancador de motor manual, NEMA, 16A, 600VCA, 2 polos.
| Operator | Push Button |
|---|---|
| NEMA Size | M-0 |
| Enclosure NEMA Rating | 1 |
| Number of Required Thermals | 1 |
| Depth | 3.95 in |
| Frame Size | Not Applicable |
| Height | 8.63 in |
| Amps AC | 18 A |
| Width | 5 in |
| Item | Manual Motor Starter |
| Number of Poles | 2 |
| Max. Voltage | 600V AC |
| HP @ 1 Phase - 120V | 1 hp |
| Pilot Light | Yes |
| Standards | CSA LR60905, E42243 CCN NLRV, UL Listed |
| Thermal Unit Code | J2 |
| Description/Special Features | Reliable Overload Protection |
| HP @ 1 Phase - 230V | 2 hp |
| Phase Loss Sensitivity | No |
| Maximum Horse Power Rating | 1-1 hp 115 V AC, 1 phase || 2-2 hp 230 V AC, 1 phase |
| Local Signalling | no indicator |
| Auxiliary Contact Composition | without |
| Awg Gauge | AWG 14...AWG 8 copper |
| Nema Degree Of Protection | NEMA 1 painted sheet steel |
| Motor Starter Type | non reversing |
| Control Type | push-button |
| [Ue] Rated Operational Voltage | 600 V AC |
| Number Of Thermal Units Required | 1 |
| Poles Description | 2P |
| Product Certifications | CSA LR60905 class 3211 05 || UL listed file E42243 CCN NLRV |
| Product Or Component Type | Manual Starter |
| Electrical Connection | pressure wire clamp |
| Thermal Overload Type | melting alloy |
| Series | Class 2510 M Series |
| Maximum Overload Relay Current Setting | Not Applicable |
| Overload Protection Type | Thermal |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Phase | Single |
| Minimum Overload Relay Current Setting | Not Applicable |
| Includes Pilot Light | No |
| Overall Depth | 4.13 in |
| Maximum Voltage Rating | 600 V AC |
| Status Indicator | No Indicator |
| NEMA Enclosure Rating | 1 |
| Overall Height | 8.63 in |
| Overall Width | 5 in |
| Current AC | 18 A |
| IP Rating | Not Applicable |
| Terminal Connection Type | Screw Clamp Terminals |
| Starter Style | NEMA |
| Package Quantity | 1 |
