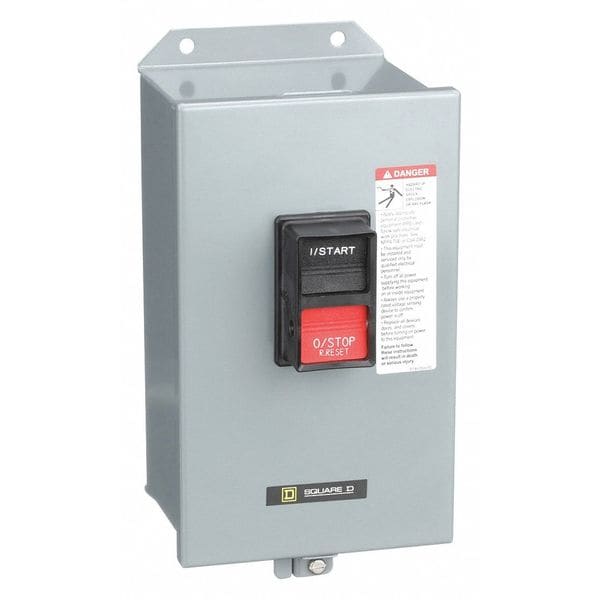

Arrancador de motor manual, NEMA, 16A, 600VAC, 3P
| Operator | Push Button |
|---|---|
| NEMA Size | M-0 |
| Enclosure NEMA Rating | 12 |
| Depth | 5-3/4 in |
| Number of Required Thermals | 3 |
| Frame Size | Not Applicable |
| Amps AC | 18 A |
| Height | 10-3/4 in |
| Width | 5-3/4 in |
| Item | Manual Motor Starter |
| Number of Poles | 3 |
| Max. Voltage | 600V AC |
| HP @ 3 Phase - 480V | 5 hp |
| HP @ 3 Phase - 240V | 3 hp |
| Pilot Light | Yes |
| Thermal Unit Code | M2 |
| Standards | CSA LR60905, E42243 CCN NLRV, UL Listed |
| Description/Special Features | Reliable Overload Protection |
| HP @ 3 Phase - 575V | 5 hp |
| HP @ 3 Phase - 460-575V | 5 hp |
| Phase Loss Sensitivity | No |
| Thermal Overload Type | melting alloy |
| Nema Degree Of Protection | NEMA 12 painted sheet steel |
| Motor Starter Type | non reversing |
| Local Signalling | no indicator |
| [Ue] Rated Operational Voltage | 600 V AC |
| Product Certifications | CSA LR60905 class 3211 05 || UL listed file E42243 CCN NLRV |
| Auxiliary Contact Composition | without |
| Electrical Connection | pressure wire clamp |
| Number Of Thermal Units Required | 3 |
| Poles Description | 3P |
| Product Or Component Type | Manual Starter |
| Maximum Horse Power Rating | 3-3 hp 200...230 V AC, 3 phase || 5-5 hp 380...575 V AC, 3 phase |
| Control Type | push-button |
| Awg Gauge | AWG 14...AWG 8 copper |
| Phase | Three |
| IP Rating | Not Applicable |
| Maximum Overload Relay Current Setting | Not Applicable |
| Overall Width | 5.78 in |
| Overload Protection Type | Thermal |
| Series | Class 2510 M Series |
| NEMA Enclosure Rating | 12 |
| Starter Style | NEMA |
| Maximum Voltage Rating | 600 V AC |
| Current AC | 18 A |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Height | 10.92 in |
| Minimum Overload Relay Current Setting | Not Applicable |
| Includes Pilot Light | No |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Overall Depth | 5.76 in |
| Status Indicator | No Indicator |
| Package Quantity | 1 |
