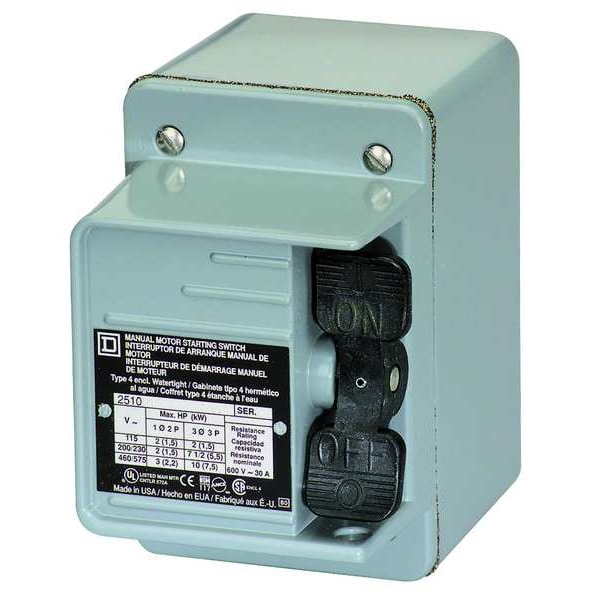

Interruptor manual de motor, NEMA, 600VCA, 2 polos, M-1P
| Operator | Switch |
|---|---|
| Type | K |
| Enclosure NEMA Rating | 4 |
| Depth | 4-1/4 in |
| Height | 4.38 in |
| Amps AC | 30 A |
| Width | 3 in |
| Item | Manual Motor Switch |
| Starter Type | NEMA Style |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 10 hp |
| Max. Voltage | 600 V AC |
| HP @ 115VDC | 2 hp |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| Pilot Light | Yes |
| Phase Loss Sensitivity | No |
| Standards | CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV |
| HP @ 230VDC | 1 1/2 hp |
| HP @ 3 Phase - 575V | 10 hp |
| Description/Special Features | 3/4 in Pipe Tap on Top and Bottom |
| HP @ 1 Phase - 230V | 7 1/2 hp |
| HP @ 3 Phase - 460-575V | 10 hp |
| Control Type | toggle |
| Awg Gauge | AWG 14 to AWG 10 copper |
| Motor Starter Type | non reversing |
| Maximum Horse Power Rating | 2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC |
| Product Or Component Type | Single Unit Manual Switch |
| Line Rated Current | 30 A |
| Electrical Connection | Screw Clamp Terminals |
| Phase | Three |
| Nema Degree Of Protection | NEMA 4 die cast zinc alloy standard size |
| [Ue] Rated Operational Voltage | 600 V AC || 230 V DC |
| Local Signalling | no indicator |
| Cable Entry | 0.75 NPT (top and bottom) |
| Product Certifications | UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05 |
| Poles Description | 3P |
| Horsepower @ 230V DC | 1.5 HP |
| Maximum Voltage Rating | 230 V DC, 600 V AC |
| Hazardous Location Specification | Not Applicable |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Overall Height | 4.38 in |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Hub Type | Feed Through |
| Series | Type K, Class 2510 |
| Mounting Style | Surface |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Terminal Connection Type | Screw Terminals |
| Hub Diameter | 3/4 in |
| Includes Pilot Light | No |
| NEMA Enclosure Rating | 4 |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Current AC | 30 A |
| Starter Style | NEMA |
| Overall Width | 3 in |
| Horsepower @ 115V DC | 2 HP |
| Overall Depth | 4-1/4 in |
| Horsepower Rating | 2 hp 115 V AC; 1 hp 90 V DC; 2 hp 115 V DC; 1.5 hp 230 V DC; 7.5 hp 230 V AC; 10 hp 460 V AC; 10 hp 575 V AC |
| Certifications | UL listed file E42243 CCN NLRV; CSA LR25490 class 3211 05 |
| Number Of Phases | 3 phase |
| Package Quantity | 1 |
