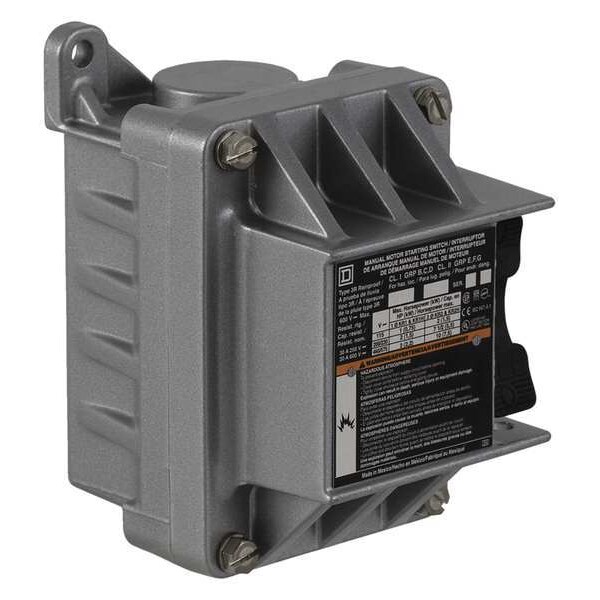

Interruptor manual de motor, NEMA, 600VCA, 3 polos, M-0.
| Operator | Switch |
|---|---|
| Enclosure NEMA Rating | 3R, 7, 9 |
| Depth | 4-1/4 in |
| Amps AC | 30 A |
| Height | 6.36 in |
| Width | 3.95 in |
| Item | Manual Motor Switch |
| Starter Type | NEMA Style |
| Number of Poles | 2 |
| Max. Voltage | 600 V AC |
| HP @ 3 Phase - 480V | 3 hp |
| HP @ 115VDC | 2 hp |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 3 Phase - 240V | 2 hp |
| Pilot Light | No |
| Description/Special Features | Hazardous Location |
| Standards | CSA LR26817 Class 3218 04, UL Listed E58760 CCN NPXZ |
| HP @ 3 Phase - 460-575V | 3 hp |
| Phase Loss Sensitivity | No |
| HP @ 1 Phase - 230V | 2 hp |
| HP @ 230VDC | 1 1/2 hp |
| HP @ 3 Phase - 575V | 3 hp |
| Nema Degree Of Protection | NEMA 3R/7/9 Cast Aluminium standard size |
| Product Or Component Type | Single Unit Manual Switch |
| Product Certifications | UL listed file E58760 CCN NPXZ || CSA LR26817 class 3218 04 |
| Poles Description | 2P |
| Motor Starter Type | non reversing |
| Phase | Single |
| Maximum Horse Power Rating | 2 hp 115 V AC || 2 hp 230 V AC || 3 hp 460 V AC || 3 hp 575 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC |
| [Ue] Rated Operational Voltage | 600 V AC || 230 V DC |
| Awg Gauge | AWG 14 to AWG 10 copper |
| Control Type | toggle |
| Cable Entry | 0.75 NPT (bottom) |
| Line Rated Current | 30 A |
| Local Signalling | no indicator |
| Electrical Connection | Screw Clamp Terminals |
| NEMA Enclosure Rating | 7, 9, 3R |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Overall Depth | 4.35 in |
| Terminal Connection Type | Screw Terminals |
| Hazardous Location Specification | Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G |
| Horsepower @ 115V DC | 2 HP |
| Includes Pilot Light | No |
| Horsepower @ Three Phase - 480V AC | 3 HP |
| Maximum Voltage Rating | 230 V DC, 600 V AC |
| Horsepower @ 230V DC | 1.5 HP |
| Series | Type K, Class 2510 |
| Starter Style | NEMA |
| Hub Diameter | 3/4 in |
| Overall Height | 6.36 in |
| Horsepower @ Three Phase - 600V AC | 3 HP |
| Horsepower @ Three Phase - 240V AC | 2 HP |
| Mounting Style | Surface |
| Current AC | 30 A |
| Overall Width | 3.95 in |
| Hub Type | Dead End |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Package Quantity | 1 |
